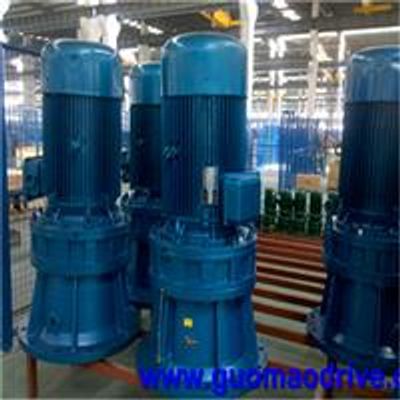

Model XLD -Cyclo Gear Speed Reducer

_{Type Designation(without motor)}

• Example: XL(E)D41-1225-0.37-W
• X: X series cyclo drive gearbox
• L: Vertical mounted with flange, Shaft downward
• (E): None-one stage, E-two stage, S-three stage
• D:Standard electric motors
• 41: Model number 41
• 1225: Speed Reduction Ratio
• 0.37: Electric motor power:0.37kw
• W: Mounting way.

Parameter Range

• Power range: 0.25 - 90kW
• Output speed(r/min): 0.011 - 161
• Output Torque(N.M): Top to 22920N.m

• Paint Color: Various
• Material: Rugged cast iron or ductile housings
• Lubrication: Grease or oil lubricated models available.
• Seals: Nitrile material, dual lipped, double output seals available.
• Working: 24 hours continuous available and shaft forward reverse
• Reducer Reduction: Internal planetary gear mechanism with trochoidal curved tooth profile.
• Atmosphere: Well ventilated location, free of corrosive gases, explosive gases, vapors and dust
