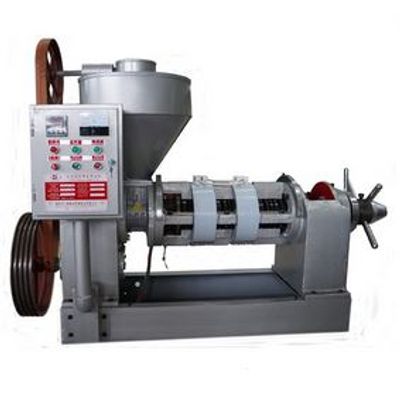

Model YZYX10-6(8/9)WK - Automatic Temperature Controlled Oil Press



Our series YZYX10 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

  • Model YZYX10-6(8/9)WK
  • Processing capacity(t/24h) 4.5
  • Main electromotor power(kw) 11
  • Weight(kg) 590
  • Measurement(mm)(L*W*H) 1720*580*1165

The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and abrasion, and thus lengthen the durability. When the squeezing is suspended, the temperature can be maintained by this system.

YZYX10-6WK and YZYX10-8WK is 3-step squeezing spiral oil press with bigger compression ratio in the press chest and higher oil yield than YZYX10-2WK and YZYX10-4WK.

YZYX10-9WK is 4-step squeezing spiral oil press.

YZYX10J-2WK is 4-step squeezing spiral oil press with longer squeeze chest and bigger compression ratio, which is suitable for users who have operation experience and stress on low oil content of the dry cakes.

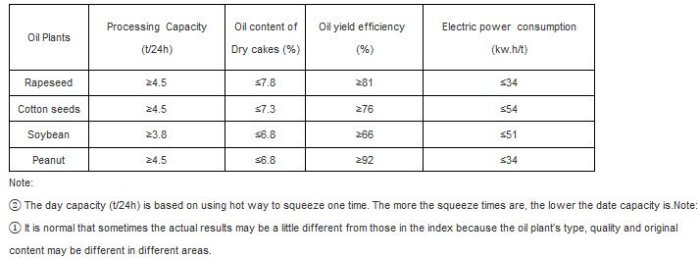

Below features are based on oil plants above the average quality smoothly and continuously squeezed after such pretreatments as screening, husking, flaking and cooking, etc.

  • Item YZYX10-6WK、10-8WK、10-9WK、10J-2WK
  • Revolving speed of spiral axis  (r/min) 26~41
  • Power required(kw) 11
  • Power of heater(kw)    ≥2.4
  • Measurement  (mm) 1720×580×1185
  • Weight  (kg) 590
  • Note: This weight is without electro-motor’s weight.
