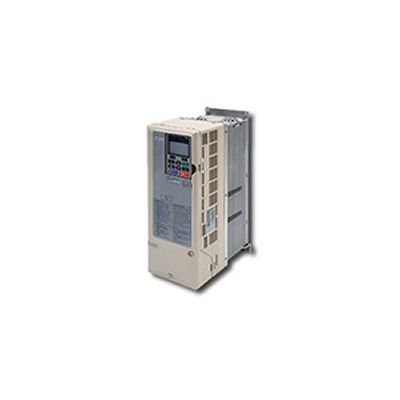

Model Z1000 -Variable Speed Drive
The Z1000 variable speed drive is designed for building automation applications such as fans, pumps, and cooling towers through 500HP. The Z1000 features an easy-to-read LCD keypad that provides Hand-Off-Auto interface and a real time clock. These features make the Z1000 perfect for many building automation applications that require reliable motor control.
Additional specifications can be found within the Z1000 User Manual (Doc# TOEPC71061645) under the Specifications section.
Feature Highlights
Harmonic Mitigation
- Built-in 5% line impedance for input harmonic reduction.
Noise Filter
- On board EMI/RFI filter complies with IEC 61800-3 restricted distribution for first environment.
Serial Communications
- Embedded BACnet communications (BTL Certified), along with Modbus/Memobus, Metasys and Apogee FLN.
Ratings
- Plenum Rated (UL 1995). Seismic Rated (IBC 2006 - Certification 12/2011). Made with RoHS compliant materials.
Internal Real-Time Clock
- Time and date stamping for events, along with timer controls for starting stopping and speed changes without the need for external controls.
PI Feature
- Maintains a set point for closed loop control of fans and pumps for pressure, flow or temperature regulation and eliminates the need for a closed loop output signal from a BAS. Independent PI to control an external device in the system.
LCD Operator
- 5-Line 16 character alpha-numeric, easy to read and understand display, with Hand-Off-Auto functions.
Carrier Frequency
- 5 kHz carrier frequency with dynamic noise control for quiet motor operation.
Application Macros
- Choose from pre-configured set up macros to match the application for quick and easy set up.
Sealed Heatsink
- Allows for drive to be mounted in a NEMA 12 enclosure with heatsink external.
Overload Capacity 110% for 60 seconds, 175% instantaneous
Output Frequency 0.01 to 240 Hz
Control Methods V/Hz Control
Open Loop Vector Control for Permanent Magnet motors
Motor Types Squirrel Cage Induction Type
Interior Permanent Magnet (IPM)
Enclosures NEMA Type 1 / IP20 : 3 - 100 HP 208V and 3 - 250 HP 480V
Open Type / IP00 : 125 - 150 HP 208V and 300 - 500 HP 480V
Ambient Operating Temperature -10°C to 40°C (14°F to 104°F)
Global Certification UL, CSA, CE, RoHS
Standard I/O Multi-Function Programmable Digital Inputs (24Vdc): 7
Multi-Function Programmable Analog Inputs (0-10VDC or 4-20mA): 2
Fault Relay Output (Form C - 2 Amps at 250Vac max): 1
Multi-Function Programmable Relay Output (Form A - 2 Amps @ 250Vac max): 3
Multi-Function Programmable Analog Outputs (0-10Vdc or 4-20mA): 2
24 Vdc, 150 mA Transducer or Transmitter Power Supply for customer use: 1
Network Communications Built-in BACnet, RS485/422 - Programmable up to 76.8 kbps
Optional: LonWorks, Metasys / APOGEE FLN
These Communications cards provide the interface between the Commercial Building networks and Yaskawa AC drives. These options may be factory installed or field installed. Factory mounted and wired options are provided with configured packages or custom engineered packages.
