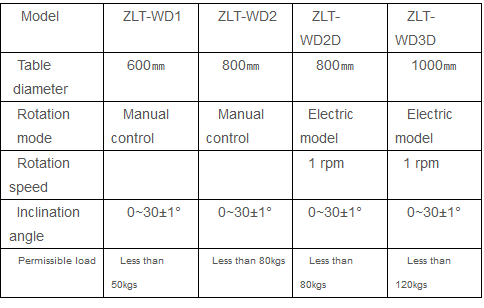

Model ZLT-WD -Inclined Plane Stability Test Device

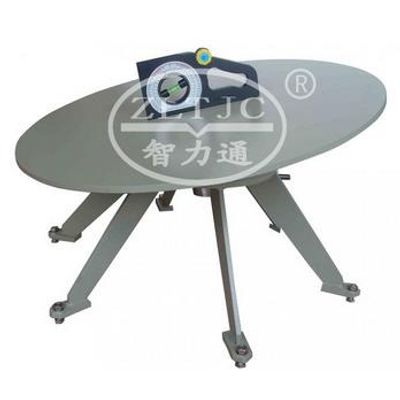

 To determine the stability of electric appliances which are used on a table or on the floor, in accordance with IEC60065 clause 19.1, IEC60335-1 clause 20.1, IEC60601-1 clause 24.1, IEC 60950 clause 4.1.1. The device consists of a surface and a threaded spindle with handwheel for adjusting the incline of the table board from the horizontal up to 30°against the horizontal.

Standard Outfit:

• 1 table board, with supporting frame,
• 1 base plate with hinges for the supporting frame and for the spindle bearing,
• 1 threaded spindle with handwheel for adjusting the incline of the table board from the horizontal up to 30°against the horizontal,
•  1 inclination angle measuring instrument, to mount at the table board, for checking the angle of inclination of the table board,
