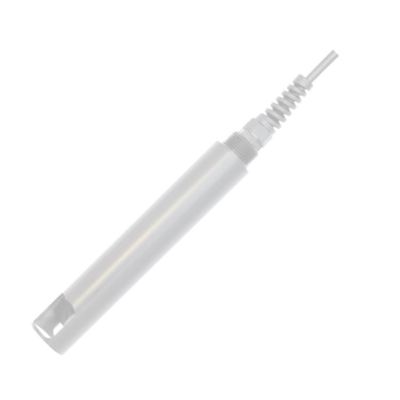

Model ZWQ-ORP1 -ORP Electrode Sensor
ZWQ-ORP1 ORP Electrode Sensor is used for monitoring ORP in water quality. It has corrosion resistance shell and is suitable for all kinds of harsh working environment. Compared with traditional coastal instruments, ZWQ-ORP1 ORP meter is more convenient to install. It uses RS485 interface and Modbus RTU standard protocol to communicate, with low power consumption, and supports solar power supply and wireless communication.
MONITORING PARAMETERS: ORP
MONITORING PRINCIPLE: Glass Electrode
POWER-IN: DC12/24V / Solar Power
INTERFACE: RS485/RS232/Wifi/BT/LTE
MODEL: ZWQ-ORP1
Measuring Principle: Glass Electrode
Measure Range: -2000-2000mV
Measure Resolution: 0.1mV
Measure Accuracy: ±1mV
Response Time: < 15s
Interface: RS485（Modbus RTU）
Material: POM
Electrode Cable: 3m
Electrode Dimension: D34mm L205mm
Power: DC12/24
- Surface water
- Groundwater
- Corrosion resistant shell; NPT3/4 upper thread interface, easy to install.
- Double salt bridge design, anti-medium reverse osmosis, longer sensor life.
- The annular exudation interface is not easy to plug and has stronger pollution resistance.
- Platinum 99.9%, no drift, high accuracy.
- It has the function of calibration record storage, plug and play, and no calibration is needed for the first use.
- Sensor supports hot swap function.
