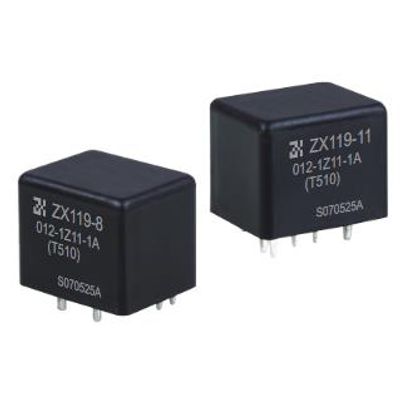

Model ZX119 30-45A -Hight Current Industrial Automotive Relays
Main Features: 30A to 45A continuous current capacity. Availble with 2 footprints. Available and open,dust cover and sealed version. Automotive-oriented design.
Most popular related searches
- Operate/Release Time 5ms. typical/1.5ms. typical
- Insulation Resistance 100MΩ, at 500VDC, 50%RH
- Dielectric Strength 500Vrms, 1 min
- Shock Resistance 20g, 11ms
- Vibration Resistance DA1.5mm, 20-200Hz
- Ambient Temperature Operating：-40℃ to 85℃
- Storage：-40℃ to 155℃
- Weight Open: Approx 18g; Covered: Approx 23g
- Drop Resistance Drop Resistance 1M height drop on concrete
