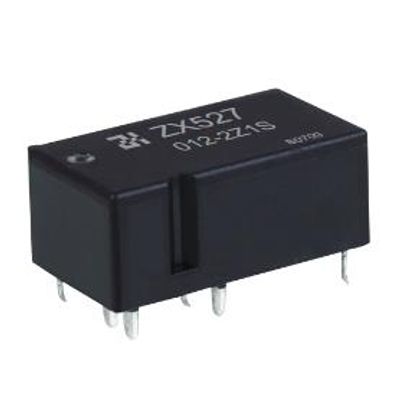

Model ZX527 -Waterproof Universal Power Automotive Relays

Typical automotive Applications

• Power antenna
• Steering wheel power tilt
• Power window
• Contral door lock
• Interval wiper control
• Seat adjustment
• Sunroof control
• Immobilizer

• Operate/Release Time 3ms. typical/1.5ms. typical
• Insulation Resistance 100MΩ, at 500VDC, 50%RH
• Dielectric Strength 500Vrms, 1 min
• Shock Resistance 30g, 6ms.
• Vibration Resistance 6g, 10-55Hz
• Ambient Temperature Operating：-40℃ to 105℃ Storage：-40℃ to 155℃
• Weight Approx 8g
• Drop Resistance Drop Resistance 1M height drop on concrete
