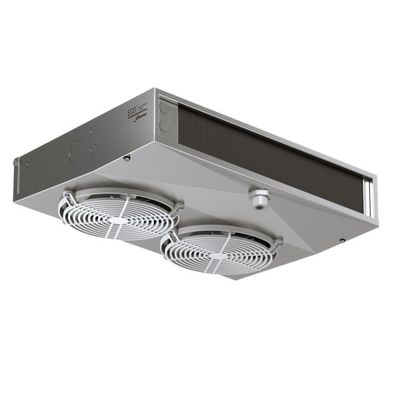

Modine - Model EVS -Small Cold Rooms / Reach-In Displays
Range consists of 20 customizable models. In accordance to the room temperature, this range is subdivided into two types: EVS for higher temperatures (≥–12°C), with 3,5/7 mm dual fin spacing and electric defrost. EVS/B for lower temperatures (≥–25°C), with 4,5/9 mm dual fin spacing and electric defrost. On request, the models can be equipped with non-standard: coils, defrosting, and fan motors.
Most popular related searches
COIL FEATURES
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants (smooth tube for brine coolers).
- The updated coil design responds to the recent guidelines governing the reduction of HFC gases with high greenhouse effect
CASING
- Casing Features Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film
FAN MOTORS
The standard AC fan motors employed have the following features:
- Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guard
- Ø 200 mm
- fan motor module: the same as AC fan motors
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guard
DEFROST
The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminals preset for 230V/1/50-60Hz connection
WIRING
The EVS/B models are equipped with internal drip tray and a junction box (IP 54) for the wiring of the fan motors and for possible electric heaters
CERTIFICATIONS
- CE
- PED
PUBLISHED DATA
- EN 328 reference standard
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions
- Refrigerants:
- EMEA: R448A refrigerant (mid point)
- APAC: R404A refrigerant
- air inlet temperature 0 °C
- evaporating temperature –8 °C
- TD 8 K
- Reach-in cabinets
- Display cases
- Small cold rooms
- Walk-in cabinets
