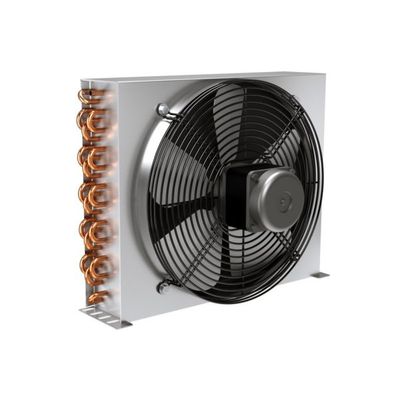

Modine - Model LCE -Air Cooled Condensers
The condensers of the LCE range are particularly suitable for installation in small condensing units. Range consists of 16 customizable models. On request the models can be equipped with non-standard coils.
COIL FEATURES
The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants. For the entire range 3 mm fin spacing
CASING
Casing Features Made of a galvanized steel
FAN MOTORS
The standard AC fan motors employed have the following features:
Ø 170; 200; 230; 250 or 300 mm
single-phase 230V/1/50 Hz shaded pole
CERTIFICATIONS
CE
PED
PUBLISHED DATA
EN 327 reference standard
The stated capacity is assessed based on ambient temperature 25 °C and condensing temperature 40 °C with R448A (mid-point)
Applications
Small Condensing units
Capacity Range
From 0,37 to 2,4 kW
