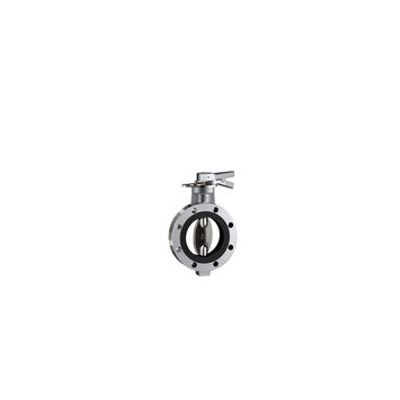

Burgmer - Model 110 BA -Modular Butterfly Valve
Application area: Silo- / Liquid tank trailers. Installation situation: Wafer valve / Lug valve. Medium/aggregate state: Fluids, Bulks, Gases. Diameter: DN 50 – DN 200. Pressure range: -0,8 bar up to +6 bar*. Feature: easy servicing .
Most popular related searches
- Casing: EN AC-46200 / EN AC-51100
- Disc: 1.0619 / 1.4408 / 1.4408 HP
- Shaft: 1.1191 / 1.4404
- Bearing pin: 1.1191 / 1.4404
- Sealing: NBR, EPDM, FKM, Fortelan/AU, MVQ, CSM
- Flange bores: TW-Norm, PN 6, PN 10, special boring
- Actuation: Hand lever / prepared for cardan joint, Customs locking device
- Guideline
- DGRL 2014/68/EU
- FDA 177.2600
- VO EG 1935/2004
