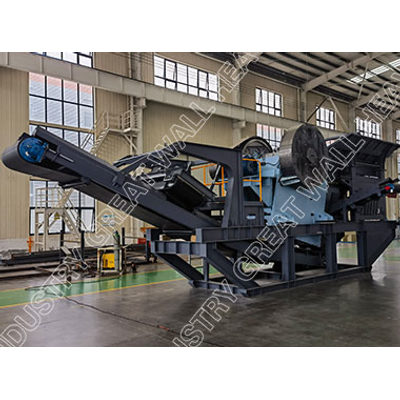

Great Wall - Model MK -Modular Crushing and Screening Plant
MK Modular Crushing and Screening Plant is a new type of integrated crushing and screening station launched by our company according to market demand. The MK Modular Crushing and Screening Plant is a large-scale crushing production line that is convenient for installation and transition of the equipment production line. It can realize the assembly of the production line on the flat ground without foundation or with a simple foundation. Not only is it small in size and convenient for hoisting and transportation, it can also be quickly installed and put into production on site, with low investment and high output. It is very suitable for crushing and screening projects with limited site space and tight construction period. It is widely used in metal and non-metallic minerals, cement, sand and gravel, metallurgy, construction waste treatment and other industries, and can crush various metal and non-metallic ores, rocks, etc.
- The unique frame chassis structure can carry larger models of main equipment and has large production capacity.
- It can be hoisted and transported as a whole, and it can be put into production quickly, which optimizes the process design of the production line and saves site investment costs.
- Intelligent control and simple operation. A single crushing station adopts an integrated control system, and can also be equipped with a centralized control system for the entire production line and a visual touch screen operation, making the operation more intelligent, convenient, and safe, and improving production efficiency.
- Diverse combinations, convenient and flexible. The production line configuration can be adjusted at any time according to changes in on-site working conditions, and the crushing unit and screening unit can be separated, which is convenient for overall sealing and meeting environmental protection requirements.
- Convenient maintenance, safer and more convenient. The preset maintenance platform ensures the safety of operating and maintenance personnel and the convenience of on-site maintenance; at the same time, the entire line of products can achieve automatic lubrication, reduce the number and time of maintenance, and reduce the customer`s later maintenance costs.
Materials fall into the hopper of VSI sand making machine, then get into the high speed rotating wheelie through center feeding hole. Materials are speed up rapidly in the wheelie, the speed can be dozens of times of gravity acceleration, then shoot out at high speed and hit against the materials falling free after being rebounded, then they are all impacted to the liner layer of materials to strike against each other, or to the counterattack board to be bounded oblique upward to the top of the eddy current cavity, then change their heading , deflect and move downward, then strike against the materials shot out from the impeller passage , which forms continuous material flow. So the materials are hit, rubbed and grinded for two or more times in the eddy current crushing cavity. The crushed materials are discharged from the lower outlet.
