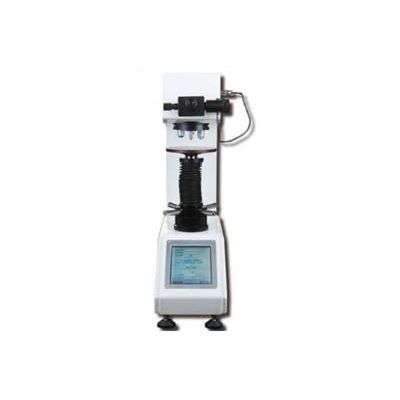

EBP - Model DV-10ALT -Modular Design Macro Vickers Hardness Tester

FromEBPU Electromechanical Equipment (Zhejiang) Co., Ltd.

Modular Design Macro Vickers Hardness Tester Easy Operation With HV / HK Test Function. HV10 Load cell Close Loop Digital Metal Macro Vickers hardness test equipment with Auto turret.

Most popular related searches

hardness testing

hardness testing system

Closed loop design with high accuracy load cell, no need to install dead weights, let installation easier and loading - dwell - unloading automatically, easy operation
With load automatic correct function, greatly improved test accuracy and let calibration more easy
Hardness value automatic corrected according to different hardness block
Touch screen interface with menu structure, make test very simple
Modular design, simple maintenance
With hardness conversion function, from HV hardness value can covert to HR, HB, etc.
With HV/HK test function
Support to set a password protection setting
Test data can save to USB flash disk as EXCEL format, edit and process more easy
Available to upgrade to fully automatic Vickers hardness tester

Widely used to test the hardness of all kinds of metal materials (steel, nonferrous metals, tinsel, cemented carbide, sheet metal, etc.)
surface layer / coating (Carburization, nitriding, decarburization layer, surface hardening layer, galvanized coating, etc.)
Glass, chip, ceramic, plastic and rubber, etc.

Model: DV-10ALT
Test Force:

0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf (19.6N),
3.0Kgf (29.4N), 5.0Kgf (49.0N), 10.0Kgf (98.0N)

Hardness conversion: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Eyepiece: 10X digital eyepiece with built-in encoder
Min measuring unit: 0.01µm
Hardness range: 8-2900HV
Force loading: Automatic loading - dwell - unloading
Turret: Automatic
Objective: Standard: 10X, 20X
Magnification: Standard: 100X (measurement), 200X (measurement)
Dwell time: 0-99S (1 second per step)
Data output: Test data display on LCD screen, can save to U-flash in Excel format
Test space: 180*160MM (H*D)
Power supply: AC220V+5%,50-60Hz
Standard: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
Overall Dimension: 580*240*660mm
Net weight: About 50Kg

Item: Quantity
Main Instrument: 1
Middle, Large, V shape testing table: Each 1
Vickers hardness block: 2
USB flash disk: 1
Power Cord: 1
10× Digital Micro Eyepiece: 1
10X/20X objective lens: Each 1
Regulating Screw: 4
Dust cover: 1
Spare Fuses (2A): 2
Production certificate: 1
Instruction: 1
