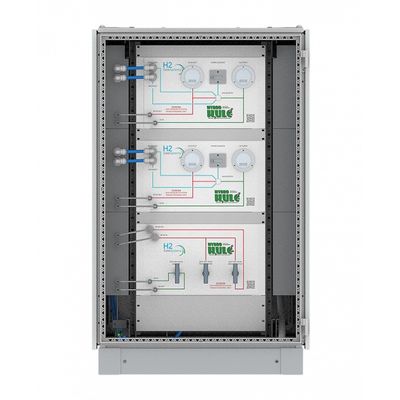

H2 Core - Model Hydro Hulc -Modular Gas Compression System
The Maximator Hulc Series is a modular Gas Compression System, specifically designed for Hydrogen compression up to 1000 bar with scalable volume flow. A standard configuration consists of one control module (MASTER-module) and up to three gas booster modules (X-modules) – first stage module up to 140 bar, second stage module up to 400 bar and the final stage module up to 1000 bar. This configuration will provide a gas outlet flow of 5 Nm³/h Hydrogen per hour. For higher outlet capacities more modules can be connected easily.
- High availability
- Innovative design
- Modular system
- Plug and boost
- Scalable compression power
- Safety and service friendly
Pressure class: Hulc 140: up to 140 bar; Hulc 400: up to 400 bar; Hulc 1000: up to 1000 bar
Inlet pressure: Hulc 140: <=35 bar; Hulc 400: <=140 bar; Hulc 1000: <=400 bar
Mass flow H2: up to 5 Nm³/h
Air supply connection: BSP ¾”
Air bleed connection: BSP ¾”
Gas supply: ¼ “Swagelok
Dimensions: 920x483x270 (6HE)
Weight: 50 kg
Cabinet outside dimensions: Hulc 140: 1200x800x1300; Hulc 400: 1200x800x1300; Hulc 1000: 1200x800x2200
