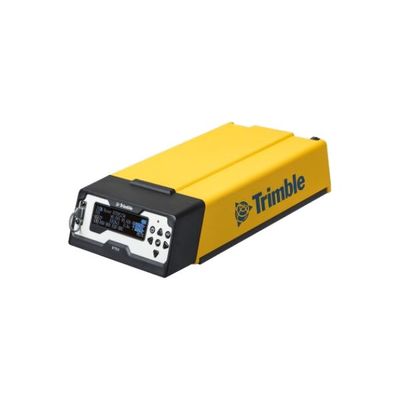

Trimble - Model R750 -Modular GNSS Receiver

SHARE

The Trimble R750 GNSS receiver incorporates the latest industry-leading positioning technology from Trimble along with a full suite of modern communications capabilities, in a rugged, modular package that can be deployed anywhere.  Convenient features, such as an integrated 4G LTE modem, four-line reversible front panel display, and USB-C PD charging, make the Trimble R750 a powerful tool for a variety of surveying applications.

Most popular related searches
GNSS receiver
GNSS
water protection

Modern, scalable, connected GNSS

  • 8 mm H / 15 mm V: RTK Precision
  • 336: Channels
  • External: Antenna
  • Trimble Maxwell 7 GNSS ASIC - tracks the latest signals from all GNSS constellations with improved EVEREST Plus multipath mitigation, interference detection, and protection against GNSS spoofing.
  • Trimble ProPoint technology - utilizes all-in-view GNSS constellations, with higher satellite visibility rates to keep you up and running with more reliable coverage and better reliability at the base station.
  • Trimble CenterPoint RTX – delivers RTK level precision anywhere in the world without the use of a local base station or Trimble VRS network.
  • Trimble xFill technology – leverages a worldwide network of Trimble GNSS reference stations and satellite datalinks to seamlessly fill in for gaps in RTK or VRS connection streams.
  • Connectivity - integrated 2.4/5 GHz Wi-Fi, Bluetooth®, and worldwide 4G LTE modules.
  • Flexibility - log, transmit, and receive data using a variety of formats and protocols.
  • Durability - IP67 water and dust protection, designed to survive a 1.1 m (3.6 ft) pole drop onto a hard surface.
  • Display - advanced four-line reversible front panel display with Power button, Enter, Escape, and navigation arrow keys for receiver configuration and status monitoring.
  • USB-C port - USB data transfer and communications port with support for USB-C PD (Power Delivery) charging in the office, on site, or on the go.
  • QR code - convenient connection to the built-in Wi-Fi access point via your smartphone or tablet.
