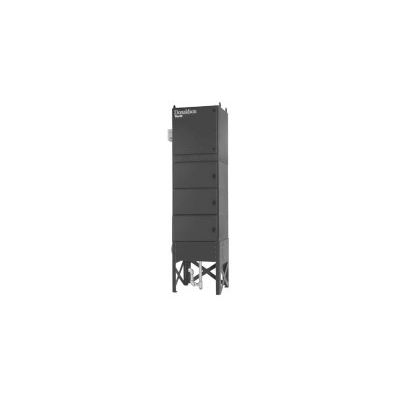

Donaldson Torit - Model MHP-1 -Modular High-Performance Mist Collectors

The Modular High Performance is an excellent choice for moderate airflow with heavy mist loading on continuous airflow applications such as high-speed grinding, screw machines, high-speed turning, and quenching.

An excellent choice for moderate airflow with heavy mist loading on continuous airflow applications.

• Screw Machines
• High Speed Turning
• High-Fluid Pressure Machining
• High-Sped Grinding
• Quenching

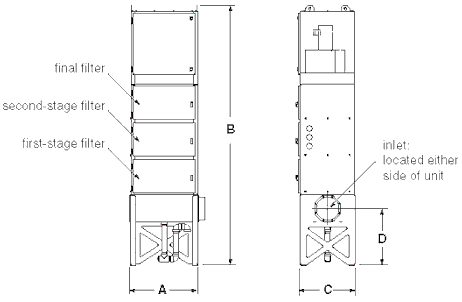

• Three-stage filtration for high filtration efficiency and optimum filter life.
• Pleated high-loft fiberglass media continuously drains, even under heavy loads--and is washable
• Handles mist and oils, with small amounts of smoke and particulate, in applications from 1000-4000 cfm.
• Hinged access doors make filter changeout simple and easy.
• Standard Minihelic gauges indicate when filter maintenance is required.
• Recirculation of clean air reduces need for costly make-up air.
• Powder coated finish is durable and chemical resistant.
• HEPA or 95% D.O.P. filters available on all models.
• Optional prefilters available with efficiency up to 99% ASHRAE on 5.0 microns for improved filter life in high-load applications.
• Helps to meet OSHA Clean Air Standards.
• Quiet Operation.
