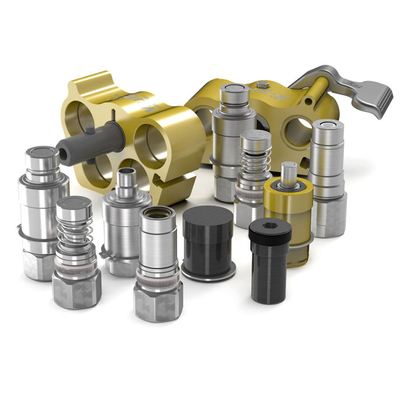

CEJN - Model Multi-X -Modular Hydraulic Coupling
Modular Multi-X couplings allow you to connect multiple media types with a single connection. Choose the coupling and nipple kit for your needs and build a customized connection. The empty block can be assembled with coupling and nipple kits for hydraulic oil, water hydraulic, compressed air or central lubrication. Multi-X provides quick and easy connection and disconnection of tools, eliminating the risk of cross-connection and improving operational safety.
Most popular related searches
- Nominal flow diameter (mm): 11 - 12.5 mm
- Max working pressure (bar): 16 - 350 bar
- Nominal flow diameter: 3/32" (2.5 mm)
- Air flow @ 100 PSI: 2.2 CFM (86 l/min)
- Max. working pressure: 145 PSI (10 bar)
- Min. burst pressure: 580 PSI (40 bar)
- Temperature range: -22°F — +212°F (-30°C — +100°C)
- Material coupling: Chrome-plated brass
- Material nipple: Chrome-plated brass
- Standards: CEJN Original 2.5 mm
- Markets: Global
Flow capacity is measured at 100 PSI (6.9 bar) inlet pressure, and pressure drop at 6 PSI (0.4 bar).
