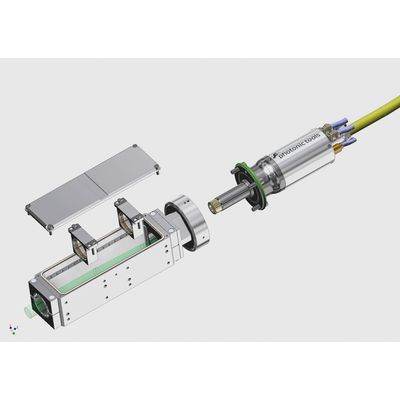

Photonic Tools - Model MPH-UKP -Modular Laser Processing Head for Precision Applications
The Modular Laser Processing Head (MPH-UKP) by PT Photonic Tools GmbH is designed for high-precision applications requiring exceptional accuracy and control. It integrates optical, mechanical, electrical, and cooling components to deliver superior performance for ultrafast and kilowatt laser systems. The customizable architecture of the MPH-UKP ensures it can be tailored to specific needs, offering the flexibility to include additional modules upon request. This enables comprehensive adaptability to varied operational environments. The MPH-UKP stands out in demanding applications due to its robust design, capable of enduring diverse environmental conditions. Ideal for professionals requiring reliable and precise laser processing, this solution represents advanced engineering and technological innovation in the field of photonics.
- For fine processing applications of ultrafast, kilowatt single mode or high beam quality lasers
- Optical flexibilty for accepting the laser source and shaping the beam to the customer's individual process
- Monitoring interfaces, e.g modefield monitoring of ultrafast lasers, optical filtering for camera vison or OCT sensor adaptation
- Module interface for the cost efficient individual and reliable system integration
- Photonic Tools' unique design for simple configuration and maintenance allows a fast delivery of complex configurations and also a field service
Optical
- Overall magnification : M = Mcol x Mfoc
- Collimation magnification Mfoc / focal length / NA (reference focal length 100 mm) : Ultrafast singlemode IR: 1,33 / 75mm / 35mrad , 1,0/100mm /35 mrad, 0,67 / 150mm /35, 0,5/ 300/35, 0,5/200/35, 0,33-0,67/150-300mm/ 35mrad, *
- Low NA multimode IR:1,1-1,7 / 60-90mm / 120mrad, 0,6-1,1/90-170mm / 65 mrad, 0,5-0,8 / 120-205mm / 50mrad, *
- Low NA multimode green: 1,1-1,8 / 120-205mm / 110mrad, *
- Focusing magnification Mfoc/ focal length (reference focal length 100 mm) : 0,5 / 50mm, 1,0 / 100mm, 2,0 / 200mm
- Axial focus movement range (MZ collimation) : +/- 5mm x Mfoc, depending on configuration
- Beam parameter acceptance
- (half angle of laser beam exiting the fibre) : 35, 60, 125 mrad, depending on optical configuration
- Fibre core diameter : 20 - 1500 µm
- Wavelength : 900 - 1100 nm, 500 -550nm, *
- Max. average laser power : 0,5 - 2 kW
Mechanical
- Dimensions : 60 x 60 x 200 mm3, dependign on configuration
- Weight : 2 - 6kg, depending on configuration
- Laser light cable receptacle : LLK-B, LLK-D, PT-B, PT-D, PT-F, PT-Q, QBH
Electrical
- Power supply : 24V / 2A
- Communication : Canbus, TTTL, *
Cooling
- Coolant temperature : 20 - 35°C, non condensing
- Flow rate : 1 - 2 l/min
Environmental
- Operating temperature : 5 - 55°C
- Transport temperature : -25 - 70°C
- Hunidity : <95%, non condensing
Additional Modules
- Cover slide monitoring, camera viewing, illumination, process monitoring, laser modefield monitoring, power monitoring
- Beam bending, scanner adaptation
- Crossjet module, cutting nozzle module
