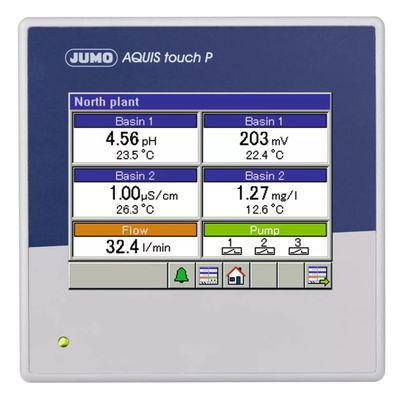

Jumo - Model AQUIS Touch P -Modular Multichannel Measuring Device (Liquid Analysis)
The product is intended as a platform for measuring, controlling, recording, and displaying the pH value/redox, electrolytic conductivity, high-purified water resistance, temperature, disinfection measurands (such as free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, and peracetic acid), and the totalized flow rate. 2 analysis inputs in any combination, 10 configurable switching outputs, 15 additional measuring signals can be connected
GENERAL TECHNICAL DATA
Interfaces: Ethernet, USB host, USB device (setup), RS422/RS485 with Modbus protocol, PROFIBUS DP, PROFINET
Features: 3.5" touchscreen; 10 inputs and outputs that are part of the standard equipment; 7 slots for input and output modules; modular design; customer-specific process screen; data monitor, recording function, web browser with online visualization; timer functions; math and logic functions; setup program, PC Evaluation Software (PCA3000), PCA Communication Software (PCC); calibration routines, calibration logbooks, calibration timer; up to 6 additional JUMO digiLine sensors can be connected
Protection type: IP66 (front)
Mounting: Control cabinet mounting (front dimensions 96 × 96 mm)
Approvals: cULus, DNV GL
Areas of application: Suitable for universal use, water and wastewater engineering; food and beverage industry (CIP/SIP); pharmaceuticals and biotechnology (USP, ASTM); drinking water technology, desalination of seawater; process technology (rinsing baths, electroplating plants, cooling tower control, gas/air washer); swimming pool technology
