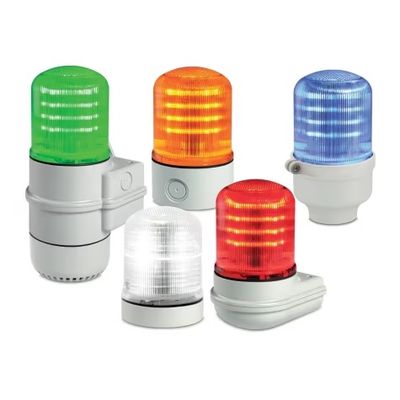

Federal Signal StreamLine - Model SLM100 -Modular Multifunctional LED Beacon
Model SLM100 offers a multifunctional LED beacon with high optical performance. Developed with a multiple input technology, Model SLM100 allows three separate light effects (steady, flashing and rotating) controllable via wiring selection. The steady light option offers a conspicuous and consistent light signal. The flashing mode consists of a triple-flash strobe effect ideal for all applications where an immediate attention gain is mandatory. The rotating light offers a traditional rotating beacon effect without moving parts, which enhances product life.
- Compatible with 12-24 Vac/dc or 120-240 Vac*
- PLC compatible with PNP or NPN connections (Except Dock Base, only NPN)
- Three separate inputs: steady, flashing, and rotating
- 100,000-hour LED
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- Seven mounting base options
- Type 4X, IP66 enclosure
- IP69K** compliant
- CE and UKCA compliant
- UL and cUL Listed
* Voltage is dependent on selected base (sold separately)
** IP69K with select bases SLMBS, SLMBD, SLMBP and included SLM-RR accessory
Model SLM100 body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.
* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting SLM Documents or Rev A Tones
- Enclosure Rating: Type 4X, IP66, IP69K
- Environmental Rating: Ordinary Location
- Lamp Life Hours: 100000
- Light Source: LED
- Operating Current (Amps): 270 @ 12VDC | 250 @ 24VDC | 270 @ 12VAC | 250 @ 24VAC | 100 @ 120VAC | 70 @ 240VAC
- Warranty: Five-year
