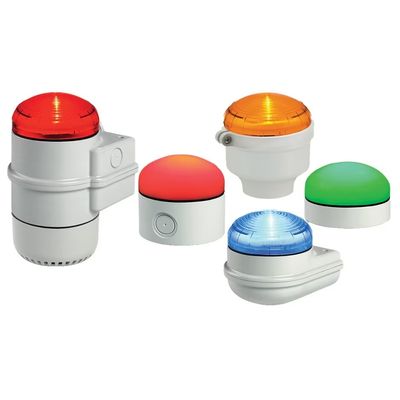

Federal Signal StreamLine - Model SLM300 and SLM350 -Modular Multifunctional Low Profile LED Beacons
Models SLM300 and SLM350 offer a multifunctional LED beacon with high optical performance. Developed with a multiple input technology, these models offer three separate light effects (steady, flashing and strobe) controllable via wiring selection. The steady light option offers a consistent light source. The flashing mode consists of a single-flash strobe effect, while the strobe effect is a 3X Flash, 5x flash, or random. Two integrated buttons allow the user to select a different light effect per channel and adjust the light output brightness (33%, 66%, 100%) for a truly custom application.
- Compatible with 12-24 Vac/dc or 120-240 Vac*
- PLC compatible with PNP or NPN connections (Except Dock Base, only NPN)
- Three flash patterns: steady, flashing, and strobe
- Three light intensity levels: 33%, 66% or 100%
- 100,000-hour LED
- Five LED lamp/lens colors: Amber, Blue, Clear, Green and Red
- Seven mounting base options
- Type 4X, IP66 enclosure
- IP69K** compliant
- CE and UKCA compliant
- UL and cUL Listed
* Voltage is independent on selected base (sold separately)
** IP69K with select bases SLMBS, SLMBD, SLMBP and included SLM-RR accessory
Model SLM300 includes an opaque lens for signaling in close proximities. Model SLM350 includes a fresnel lens for long distance signaling. The body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.
* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting SLM Documents or Rev A Tones.
- Enclosure Rating: Type 4X, IP66, IP69K
- Environmental Rating: Ordinary Location
- Lamp Life Hours: 100000
- Light Source: LED
- Operating Current (Amps): 250 @ 12VDC | 155 @ 24VDC | 250 @12VAC | 155 @ 24VAC | 100 @ 120VAC | 75 @ 240VAC
- Warranty: Five-year
