MAE - Model CPS12PA -Modular Seismic Cable System
FromM.A.E. Srl
Seismic cable equipped with 12 sockets (channels from 1 to 12) to which it is possible to connect the CPS12PB cable (channels from 13 to 24) in series to create a single layout with 24 sockets in total, separable into two sections for greater transport convenience.Most popular related searches
seismic cable
seismic
seismic system
refraction seismic
seismic reflection
seismic tomography
seismic refraction
tomography

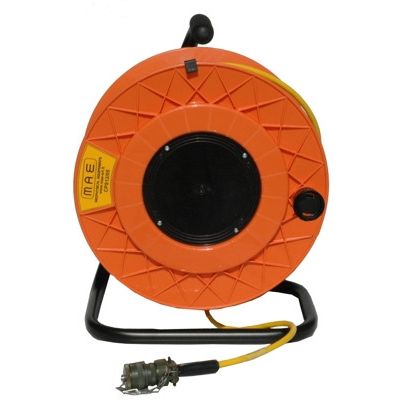

Equipped with a VEAM 55-pole male connector at the top and a VEAM 55-pole female connector at the tail. Due to cable with flexible TPE insulation and yellow polished PUR sheath, Mae cables feature an high resistance to drag and wear in general. Connecting bushes, of mueller clip type, are stored in shells of a special blend of plastic material which makes them resistant and at the same time flexible. Cables are supplied complete with reel, transport clamps and military-type bayonet plug connectors to speed up connection to the instrument.
- CPS12PA03
12 CHANNELS SEISMIC ARRAY, 3 MT SPACING
Lenght: 36 m, Cable reel dimensions: 320x210x402mm, Weight: 4,5Kg - CPS12PA05
12 CHANNELS SEISMIC ARRAY, 5 MT SPACING
Lenght: 65 m, Cable reel dimensions: 320x210x402mm, Weight: 7,5Kg - CPS12PA10
12 CHANNELS SEISMIC ARRAY, 10 MT SPACING
Lenght: 120 m, Cable reel dimensions: 610 x 475 x 385 mm, Weight: 14 Kg
Generals:
- Cable reel: iron structure, thermoplastic reel resistant to shock
- Dimensions: 320 x 210 x 402 mm
- HS code: 85444190
Connector:
- Contacts: 55 gold plated over nickel
- Installation: 3 point bayonet with 5 polarizing keys
- Certifications: military MILC-26482, JSS50813
Cable:
- Conductors: tinned copper 24x2x28AWG
- Insulator: TPE
- Sheat: yellow polish PUR
Takeouts:
- Takeouts: 12
- Initial lead: 3 m
- Connector: Mueller clips
- Material: Inox AISI 304
- Diameter: 12 mm
- Refraction seismic
- Reflection seismic
- M.A.S.W.
- Re.Mi/ESAC
- Seismic Tomography
