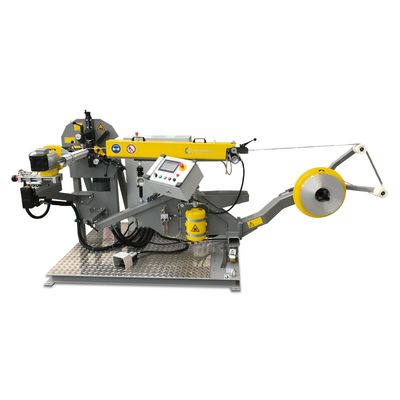

Drossbach - Model SPF 250 -Modular System for Decreased Investment
Economic machine to produce flexible single and double wall pipe for chimney and ventilation applications. Central operator panel with touch screen for easy control.
Most popular related searches
- Synchronized drivers enable strip speeds up to 75 m/min / 246 ft./min.
- Adjustable core of uncoiler for flexible material purchase.
- Integrated automatic cutter allows permanent production without stop.
- Various pipe designs can be produced by means of different tools at minimum changeover times.
- Diameter changeover possible in less than 10 minutes for highest flexibility and lowest storage effort.
- Automatic strip lubrication for highest efficiency.
- All pipe designs are made of one single strip.
- Full computerized and programmable production.
- USB connection at the operation panel allows periodical analysis of the production data.
- Integrated modem for trouble shooting, software updates or language uploads.
- Computerized and programmable handling of orders and production batches.
- Most diameter tools and profiling equipments can be interchanged between SPF 450 S and SR 300.
- Plug-and-play connection to optional compressing unit and printer.
- Well-lit working station
- Diameters up to 250 mm (10"), depending on pipe design.
- Max. strip speed 75 m/min / 246 ft./min
- Max. pipe diameter 250 mm / 10"
- Strip thickness:
- steel, galvanised or stainless up to 0,16 mm / .006
- aluminium up to 0,18 mm / .007"
- Max. strip width 54 mm / 2.126"
- Max. pipe length 120 m / 394 ft.
- Min. pipe length 0,50 m / 1.6 ft.
- Electrical power 7 kW
- Compressed air supply 6,0 bar
- Weight 1000 kg / 2,205 lbs
- Flexible chimney liners acc. to EN 1856; tightness class P1
- Flexible HVAC ducts acc. to DIN 24146
- Aluminium, stainless steel or other specific materials.
