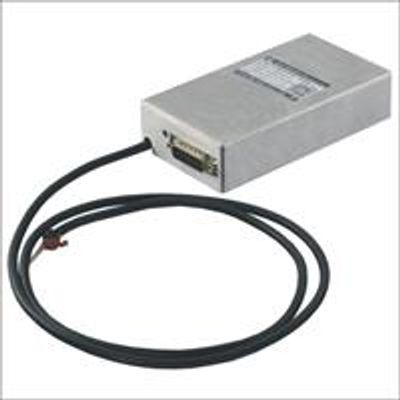

Wisman - Model PMS -Module
Wisman`s PMS series of six-sided shielded are high performance products designed with hybrid topology of linear and switch mode power conversion techniques delivering lower noise with higher efficiency.It is applied to Photomultiplier Tubes(PMT),Solid state detectors,Ultrasonic transducers and so on.PM series can control by inside potentiometer and outside potentiometer or computer.An optional RS-232 or RS-485 is vailable.PMS module is available as either a positive or negative supply. that is ideal for OEM applications.
Most popular related searches
ionization chamber
radiation counter
life science
mass spectrometry
ultrasonic transducer
scientific laboratory
DNA sequencing
gas chromatography
chemical science
life science research
- Mass spectrometry
- Photomultiplier Tubes(PMT)
- Microchannel plates(MCP)
- Proportional Counters
- GM Tube
- Avalanche Photo Diode (APD)
- Solid state detectors
- Ionization Chambers
- gas chromatography
- Electron multiplier
- Detectors
- Nuclear Instruments
- Electrophoresis
- DNA sequencing
- Radiation counter
- Electron Beam
- Ion Beam,High
- voltage bias
- Hipot Testing
- Precision Lenses Image Intensifiers
- Semicon-ductor Testing
- Electrostatic discharge Testing
- Provides power to the pulse power
- Capacitor Discharging
- Life Sciences
- Medical chemical Applications
- Science
- Laboratory Applications
- Industrial Applications
- Input Voltage:
- +24Vdc±2V. Other input voltages available on special order.
- Input Current:
- Less than 1.7A at full output.
- Output Voltage:
- 1KV,2KV,2.5KV,3KV,5KV,10KV,15KV,20KV,30KV
- Continuously adjustable over entire output range. Available in either positive or negative output polarity.
- Output Voltage Control:
- 1) Internal ten-turn potentiometer
- 2) External potentiometer 5k to 100k (set internal pot. to max.)
- 3) Remote differential voltage programming (0 to +10V gives 0 to full output).
- Accuracy 0.1%.
- Remote Control:
- Remote programming Common Mode Range: 0VDC to +10VDC
- Line Regulation:
- 0.001% for input change of 5%.
- Load Regulation:
- 0.001% for 100μA to full load change(at maximum voltage).
- Temperature Coefficient:Better than 25ppm/°C.
- Stability:
- <0.001%/hr at constant operating conditions after 1 hour warm-up.
- Output Voltage and Current Monitors:
- Voltage: 0 to +10V represents zero to full output ±1%.
- Current: 0 to +10V represents zero to full output ±1%.
- Temperature:
- Operating: 0°C to +50°C.
- Storage: -35°C to +85°C.
- Connectors:
- Input Connector: 15 pin male D connector .
- Output Connector: A captive 39.4(1 meter) long shielded HV cable is provided
- Dimensions:
- 1KV-20KV:D130mm X W70mm X H30mm
- 25KV-30KV:D165mm X W70mm X H30mm
- Weight:
- 1KV-20KV:420g（14.82 OZ)
- 25KV-30KV:650g（22.92 OZ)
