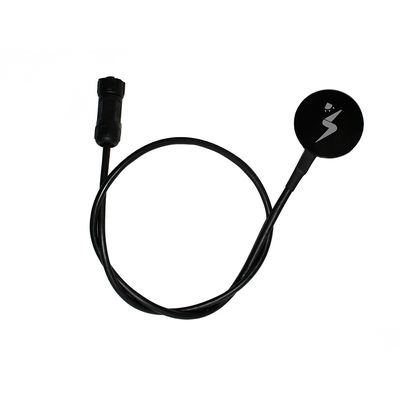

SEVEN - Model 3S-MT-PT1000 -Module Temperature Sensor-PT1000
Module temperature sensor measures the back of the solar panels temperature in degrees Celsius (°C) by using a PT1000 probe. The probe, used to measure the Back of Module Temperature, is placed between two Backsheet with EVA sheets. This Module Temperature Sensor is compatible with SEVEN Irradiance Sensor Box. The main advantage of the sensor is its structure, which is similar to the back of the PV module. Thus, the heat transfer behavior of the sensor and PV module will be similar which is the requirement.Most popular related searches
- Item Code: 3S-MT-PT1000
- Sensor Type: PT1000
- Measuring Range: -40°C to +85°C
- Accuracy: ± 0.1°C
- Resolution: 0.1°C
- Data Output: PT1000
- Electrical Connection: 3 m LIYYC11Y PUR Cable, UV and Weather Resistant
- Operating Temperature Range: -40°C to +85°C
- Sensor Cover Dimensions: Ø 35 x 3 mm
- Weight: 77 gr
- IP Rating: IP 67
- Sensor Cover: Laminated Backsheet (EVA – Tedlar)
- Mounting Method: 3M Sticker to Back of Module
- Standard: Class A according to IEC 60751:2022
