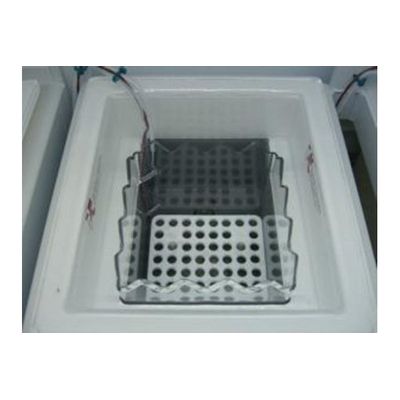

Modutek - Model QFa Series -Quartz Tanks/Baths:
The Modutek QFa Series of High Temperature Recirculating Quartz Tank is the result of almost 30+ years of evolutionary bath design and a passion for establishing the quality standard in quartz tanks. At Modutek, we define quality by the degree of safety, reliability, and cost of ownership integrated into every aspect of our quartz tank products.
Most popular related searches
liquid level sensor
digital temperature controller
process vessel
labyrinth seal
overflow weir
level sensor
weir overflow
plate diffuser
thermocouple
weir
- Nested 4 sided heating element 360º serrated overflow weir
- Dual safety snap switch
- Seamless, sloped flange design
- Fast, more even heating
- Facilitates laminar flow while minimizing particulate contamination
- Minimizes damages resulting from runaway temperatures
- Improves up time and reliability due to longer vessel life
- Applications: Etching, Stripping, Cleaning
- Chemical usage: H2SO4, H2O2, SC1, etc.
- Operating temperature range: 30 º – 180 ºC
- Process temperature control: ± 1 ºC (depends on controller and process)
- Heat-up rate: 2 º C per minute (rate affected by size of system, fluid, etc.)
- Circulating fluid inlet / outlet: 3/4” Male Flaretek
- Liquid Level Sensor
- Quartz diffuser plate
- Process temperature controller
- Autolid
- Custom vessel sizes
- Water Ring Seal (WRS) -30 month warranty, 360 degree Labyrinth seal, Contact us for specific bath price
- Electrical: 208VAC, 50 / 60 Hz, 1Ø (current requirements depends on bath size)
- Remote controller: Modutek C1915, or equivalent
- Process Vessel: Semiconductor grade, flame-polished, quartz
- Housing: UL-94 VO rated FRPP
- Process thermocouple: Teflon encapsulated J-type
- Insulation: High density alumina silica fiber rated to 1260 º C
