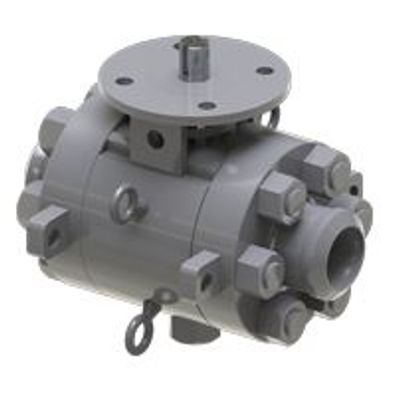

Mogas - Model SC-3PC -Isolation Valves
The SC-3PC has a three-piece body assembly with two proprietary body seals that allow the valve body to be easily removed while the end connections remain in line. The design also allows the valve body to be tested after repair, prior to insertion back in-line. The SC-3PC is used in power plants for isolation of high pressure / high temperature applications.
Most popular related searches
boiler feed pumping
drain valve
boiler feed
booster pump
isolation valve
drain pump
valve testing
gaskets
gasket sealing
corrosion protection
In-line Repairability
- Three-piece valve assembly
- Valve body can be easily removed while end connections remain in-line
- Allows valve body to be tested after repair, prior to insertion back in-line
- Mate-lapped for 100% sealing contact
- Ensures absolute shutoff
- Corrosion resistant
- Seats are protected from flow in open / closed position
- Seats are field replaceable
Assisted by line pressure, provides a constant mechanical force on ball against seat to maintain seal
Body Gaskets- Two proprietary body joint seals of Inconel 718
- Gold plating of gaskets creates a metallic permatext to assist in sealing
- Lowers contact stresses
- Ensures zero body leaks
- Live loading
- Quick open / close operation
- Extends the packing life
Power Generation
- Sootblower header
- Hot reheat spray
- Superheater spray
- Main turbine drain valve
- Boiler feed pump
- Main steam supply
- Main boiler drain
- Booster pump isolation
End Connections
- Buttweld
- Socketweld (upon request)
- Flanged (upon request)
- Clamped (upon request)
Sizes
2 to 24 inch
