A&Pp Instruments - Model ULTRA X 3011QD -Moisture Analyser for High-Temperature Applications

Rugged and accurate sampling for high temperature. Suitable for laboratory and production application. A micro processor controlled weight loss dehydration method of moisture analysis offers a truly accurate and efficient result. This process uses infrared drying and continuous weight loss measurement.

The ULTRA X 3011QD is equipped with a quartz heater to dry out the moisture with a high temperature up to 360 °C. All pre-selectable parameters are indicated on the clear LCD-display.

Beside the moisture 5 further data can be calculated, monitored and displayed. The final value of a measurement can be evaluated in two different ways: either by an automatic and product depending stop drying function „KonstaStop“ or via timer.

Further highlights are:

• continuous costs savings through reusable stainless steel bowls
• standard interface V24/RS 232
• additional special accessories such as integrated or separate printers
• software „DataBridge“ for Microsoft Excel and many more are available

The main criteria for this development have been the following:

• easy handling
• practice-orientated
• robust execution

Weigh the sample, pivot the radiator above it, the measurement starts automatically and ends when the weight is constant. All of the parameters can be changed in the menu using three buttons. The menu is shown in the LC display.
The radiation temperature can also be set anywhere between 105°C and 360°C.
The moisture content can be determined using a timer or the automatic cut-out. Three criteria are individually set for the automatic cut-out depending on the product properties: query start, weight reduction and query interval.
The measurement result remains on the display until the device is next used.
Higher temperatures result in shorter measuring times.
The reusable stainless steel sample dishes mean an ongoing cost saving.

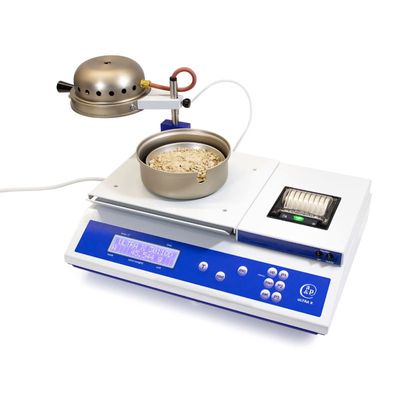

Moisture analyser ULTRA X 3011QD
The ULTRA X 3011Q can optionally be delivered with or without a built-in printer. The printout of all data is carried out in line with GLP. Intermediate values can be printed out at selectable intervals as needed. All of the data are also output via the serial RS 232 interface and USB. The printer can be switched off.

Balance
Weighing range: 210 g
Resolution: 0.001 g
Sample volume: max. 95 cm³
Drying bowl: 110 mm diameter

For moisture measuring
Sample weight: any, recommended minimum 4 g
Power of heater: 375 watts
Automation: automatic drying until weight constant selectable in 3 different modes: start measuring, measuring in intervals, weight loss / measured during intervals
Timer: 1-180 minutes
Temperature: selectable from 105 °C up to 360 °C
Measured values: % moisture, % dry mass, % moisture ad actual sample weight, g solids per kg
Measuring accuracy: 0.01%
Device identification: 4-digit ID for identifying the device
Menu lock: lock the menu to prevent accidental changes to drying parameters, cal function is further available

Communication
Data output: interface V24 / RS 232
Data signals: all weight and measuring data in GLP-format with start time and variable interval print out selectable date, time, total measuring time, type of sample

With Software ULTRA X DataChannel to transfer on PC as .xls file for Microsoft Excel, .html file, .xml file and .txt file.

For using
Power supply: 230 V 20% / + 15%
Supply frequency: 48-63 Hz
Power consump.: 400 VA
Dimensions: approx. l 385 x w 275 x h 420 mm over all
Weight: approx. 8.5 kg

ULTRA X – instruments you will find in almost all fields!
Raw material exploitation – production – processing – storage – trade – research – recycling – monitoring

ULTRA X 3011QD

• All temperature-insensitive substances
• Building materials
  Cement, concrete, gravel etc.
• Chemical industry
  Powder, granules, paste etc.
