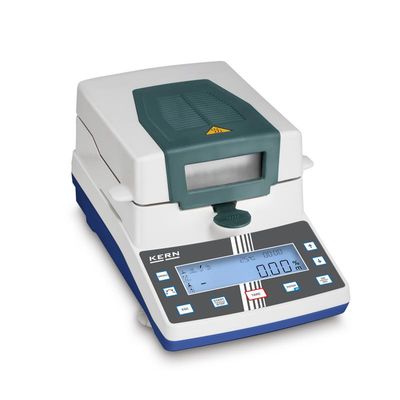

Kern Sohn - Model DAB 100-3IR -Moisture Analysers

FromKERN & SOHN GmbH

SHARE

Particularly user-friendly moisture analyzer with high-quality infrared quartz glass heater.

Most popular related searches

moisture analysis

moisture analyzer

quartz glass instrument

weighing system

laboratory balance

strain gauge system

moisture balance

laboratory analyzer

laboratory analysis

Backlit graphic display, digit height 14 mm

[[1]] Active drying process
[[2]] Active heating profile
[[3]] Active switch-off criteria
[[4]] Previous drying time
[[5]] Current temperature
[[6]] Current moisture content in %

Infrared heater 400 W
Suitable for temperature-insensitive samples
Observation window above the sample, useful during initial setting
Internal memory for automatic sequence of 15 complete drying processes and 5 drying processes carried out
The last value measured remains on the display until it is replaced by a new measurement
50 sample plates included
Application handbook: In the download centre you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser

Weighing capacity [Max] : 110 g
Readability [d] : 0,001 g
Weighing system : Strain gauge
Temperature [Min] (°C) : 40 °C
Temperature [Max] (°C) : 160 °C
Stabilization time : 3 s
Units : g, % Humidity, % Dry mass
Reproducibility : 0,001 g
Linearity : ± 0,003 g
Readability moisture [d] (%) : 0,01%
Drying modes : Standard drying, Rapid drying, Gentle drying
Switch-off criteria : time controlled, automatic, manual
Input voltage device / power [Max] : 230 V AC, 50 Hz
Product group : Moisture analyser
