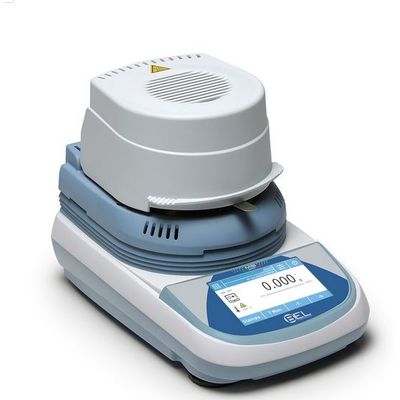

Bel - Model M5-Thermo 163L -Moisture Analyzer
M5-iThermo balances are moisture analyzers with large 5’’ color touchscreen display that gives a user-friendly access to all the moisture analyzer’s advanced applications and internal databases. The user has easy and intuitive access with fast programming of drying cycles, thanks to icon-driven menus. This means more efficiency, productivity and interactivity. A double case structure protects the heart of the balance: an aluminum inner case and a composite plastic external case. The many on-board functions already included, the possibility of calibrating the internal thermometer using the optional KIT (STCi-02), up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient. The models in the family allow to reach up to 0,001% drying resolution.
- Electromagnetic force restoration weighing system (A64M and 163M)
- High resolution load cell weighing system (163L and 62L)
- Halogen-infrared lamp
- External calibration
- Large 5’’ color touchscreen 800×480 display
- RS232 serial interface
- Drying resolution 0,001% (-A64M), 0,01% (-163M and -163L), 0,1% (-62L)
- Drying modes:Time mode (1-99 min.),Autostop % or absolute autostop in grams, Manual
- Live Graph of humidity content changing
- Temperature range:35-160°C, step of 1°C
- Temperature Profiles: Standard, fast, mild, steps
- Results in: Humidity %, Dry residue %, ATRO %, Weight
- Test results complete of full drying cycle Graph
- Up to 10 hot keys for fast recall of drying cycles from internal database
- Default database stored already with more than 30 products
- Saving results with test reports and drying graphic up to 3000 records, for each user
- Customizable settings for up to 10 users with the possibility of password protection
- Serial output for connection to printer, USB port for export or import database, test results, etc.
- Capacity [Max]: 160g
- Resolution [d]: 0,001g
- Calibration: External
- Pan size: 100mm Samples Pan
- Repeatibility: 0,001g
- Linearity: ± 0,003g
- Response time (sec.): ≤4
- Moisture Readability: 0,01%
- Moisture Repeatibility: ± 0,20% (~2g sample)
- Verification: N/A
- Temperature Range: 35-160°C, step of 1°C
- Drying Modes: Time (1-99min) / Autostop % / Absolute autostop / Manual
- Temperature Profiles: standard / fast / mild / steps
- Display Of Results: Moisture % , Dry residue % , ATRO, Weight
- Printout Of Results: Current results, GLP, full drying cycle graph, calibration data
- Max Sample Height: 25 mm
- Heater: halogen-infrared lamp/ 400W
- Minimum Load: 20 mg
- Display: 5` COLOR TOUCH-SCREEN
- Tare Range (Subtractive): 160 g
- Span Drift In +10…+30°c: ± 4 ppm/°C
- Interface: RS232, USB
- Database Capacity: 3000 x each user
- Working Temperature: 5 - 35°C
- Power Supply: 220-240Vac. (at request 110V) 50/60Hz.
- Power Consumption (Max): 430VA
- Calibrates With (Class): 100 g (F1)
- Balance Dimensions (W X L X H): 215 x 345 x 235 mm
- Net Weight / Gross Weight, Approx.: 4,9 / 6,8 Kg
- Package Size (W X L X H): 290 x 420 x 360 mm
