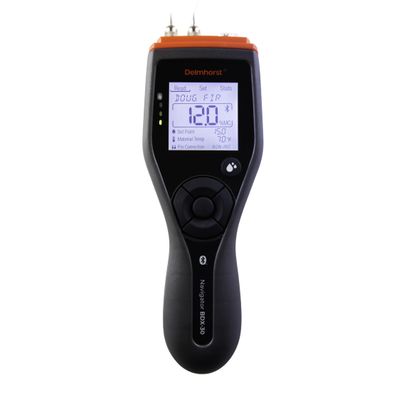

Delmhorst - Model BDX-30 -Moisture Meter
The powerful BDX-30 brings all the design elements and functionality of the BDX-20 and introduces Bluetooth® integration to the Navigator family with the Delmhorst EDGE™ app! This exciting addition to the meter enhances your ability to ensure precise readings and export data from anywhere, including geotags and timestamps. With the EDGE™ app, users can also select from 37 species and materials. The BDX-30 brings today’s technology from the field to the office, making the most challenging project easier, more efficient, and most accurate.
- Delmhorst EDGE™ app with Bluetooth® connectivity
- Large, custom display with auto backlight - easy to read under all conditions.
- Species/Materials – download up to 12 into the meter out of 37 available
- MC range:
- 6%-60% Wood (Douglas Fir)
- 0.1% -6% Drywall
- 0-100 Reference scale*
- Wood temperature correction (°F/°C)
- Alarm set point - alerts to user-selected MC level
- On-screen statistics – High, Low, Average, Standard Deviation, View all readings
- Internal calibration check
- Pins/electrode correction (insulated or non-insulated)
- Integral contact pins max 5/16” penetration (use 2498/A-100)
- Compatible with any Delmhorst external electrode.
- Color-coded LED’s – adjustable through EDGE™ app
- Sturdy plastic carrying case – included
- Power – 2x AA batteries – Alkaline Energizer included
- “Low Batt” warning with audio
- Auto off timer. Set to 1 min, 4 min or 10 min
- QR code on meter for easy access to support materials
- Size: meter only - 8.65in (2.2mm) x 2.85in (72mm) x 1.55in (39mm); in carry case - 9.5in (241mm) x 6.5in (165mm) x 2.5in (64mm)
- Weight: meter only - 0.4.5oz (1.3g); in carry case - 18oz (510g)
- 2-year warranty on manufacturer’s defects. Bonus extended warranty with on-line registration.
*If you or your team are accustomed to the BD-2100 Reference scale, the EDGE™ app allows you to select that scale as well as the standard BDX Reference scale.
BDX-30 Package Variations:
Meter with carrying case: Order as BDX-30w/CS (Price : $525.00)
P01 – Behind the Wall Package: Includes meter, 21-E electrode (3in penetration) and carrying case. Order as BDX-30/P01 (Price: $625.00)
P02 – Wood Flooring Package: Includes meter, 26-ES hammer electrode, extra pins and carrying case. Order as BDX-30/P02 (Price: $675.00)
P03 – Contractor/EIFS Package: Includes meter, 26-ES (and extra pins) and 21-E electrodes, HP-1 hole punch, 608-001 (7in spares for 21-E), pluck foam insert in case. Order as BDX-30/P03 (Price: $860.00)
*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.
