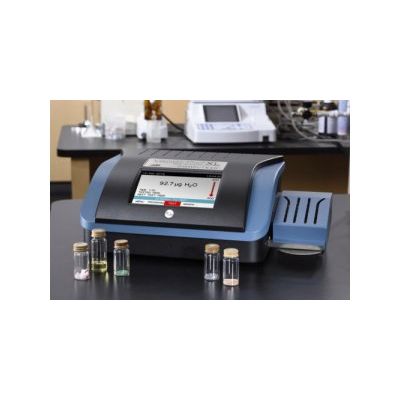

Computrac - Model Vapor Pro XL -Moisture Specific Analyzer

FromAMETEK Brookfield

SHARE

Improved repeatability, precision, flexibility and an advanced user interface – the Vapor Pro XL is the latest in moisture specific analysis technology from Computrac. The VPXL is ideal for any application in which Karl Fischer titration is used. It features an upgraded heater and increased control over testing temperatures. The VPXL is also compatible with multiple sizes of sample vials and is equipped with stepped temperature testing capabilities for enhanced method development.

Most popular related searches

Karl Fischer titration

relative humidity sensor

dry air generator

moisture analysis system

moisture monitoring

moisture analysis

humidity sensor

moisture sensor

Moisture-specific
RH-sensor technology measures moisture content and only moisture content.
Accurate
The upgraded heater allows for more control over a wider range of testing temperatures.
Sensitive
Detect as few as 10 micrograms (0.00001g) of water and determine moisture content as low as 10ppm.
Flexible
Test samples in different sized vials without exposing them to ambient air.
User Friendly
The brand new touch screen and intuitive user interface help eliminate potential sources of operator error.

Moisture Range: 10 ppm (10 μg | 0.001%) to 100%
Moisture Resolution: 1 ppm (0.1 μg | 0.0001%)
Repeatability: <10% C.V. for samples >0.1% moisture <15% C.V. for samples <0.1% moisture
Temperature Range: 25°C to 300°C
Sample Size: 0.01 g to 8 g
Results: % moisture, ppm moisture, µg water
Memory: Stores of up to 250 test programs, last 1000 test results and last 100 test graphs
Statistical Analysis: Mean, SD, CV
Ending Criteria: User adjustable: Prediction, Rate, Time, Time then Rate
Calibration: Manual calibration with NIST traceable capillary tubes
Operating Environment: 30-40°C at <50% RH; 0-31°C at <80% RH
Power Requirements: 100-120 VAC, 50/60 Hz, 8A or 220-240 VAC, 50/60 Hz, 4A
Dimensions: 6.8″ H x 18.5″ W x 11″ D (17.2 cm W x 47 cm H x 27.9 cm D)
Weight: 17.7 lbs. (8 kg)
Warranty: Two years, factory parts and labor (one year international)
Rear Panel Connections: USB A and B, ethernet, serial port, carrier gas input and output
Carrier Gas: Dry nitrogen or dry air (-40°C dew point or lower is suggested) at 17-22 psi (user supplied)
Touchscreen: LCD 800 x 480 Color TFT
Certifications: UL, CE

ZERO Chemical Reagents: The Vapor Pro ® XL (VPXL) offers moisture specific analysis that correlates well with Karl Fischer without the hassle or expense of hazardous chemical reagents, costly glassware or time consuming maintenance.
Versatile: The VPXL is ideal for any application in which Karl Fischer titration is used. From plastics to petroleum products, pharmaceuticals to chemicals, the VPXL is the perfect fit for your application.
Touchscreen: The VPXL features a brand new color LCD touchscreen and an intuitive interface that require minimal training or existing knowledge base to operate. Everything is menu driven so that you’ll get accurate results regardless of who runs the test.
High Temperature Testing: The VPXL comes with an upgraded heater, which increases the upper limit for testing temperatures to 300°C. The upgraded heater also allows for improved control over testing temperatures.
Stepped Temperature Testing: The VPXL offers stepped temperature testing capabilities with improved temperature control that make method development easier than ever before.
Multiple Sample Vial Sizes: The VPXL allows users to test samples without removing them from their sample vials. This is especially important for hygroscopic samples.
Flexible Ending Criteria: The VPXL offers user adjustable ending criteria of prediction, rate, time and time then rate to optimize performance and test results.
Data Storage: The VPXL stores up to 250 test programs and retains the last 1000 test results and last 100 test graphs, enabling users to view and select past test results for statistical analysis and test a variety of samples with ease.
Built-In Self Diagnostics: The VPXL features built in self diagnostics that routinely monitor system conditions and report abnormalities in the hardware, software, moisture sensor and flow system.
Web Server: An optional web server allows users to download calibration reports, view what is currently on the screen, download the audit log, and upload and download test programs, results and graphs.

21 CFR Part 11 Compliant (optional): Meet regulatory compliance standards for pharmaceutical and medical device companies.
ASTM D7191-10: Standard Test Method for Determination of Moisture in Plastics by Relative Humidity Sensor
ASTM D7546-15: Standard Test Method for Determination of Moisture in New and In-Service Lubricating Oils and Additives by Relative Humidity Sensor

It also correlates well with popular methods, including: ASTM D6304-16, D6869-03, D1364-02, D4017-02, D4928-12, E1064-16, D5530-15 and D4672-12.

Part Number: Description
21 CFR: 21 CFR, Part 11 Compliant
990-0252: Travel Case
Y990-0082: Digital Balance with Cable and Communications Software 115 VAC
Y990-0142: Temperature Calibration Kit 115 VAC
Y990-0143: Dry Air Generator Kit 115 VAC
Y990-0212: Color Printer Kit
Y990-0249: Technology Transfer Package
Y990-0252: Black & White Mini Printer Kit
Y990-0266: Hydrophobic Filter Kit with Fittings
Y990-0267: Hydrophobic Filter and Tube
Y990-0268: Web Server
Y990-0269: IQ/OQ/PQ Validation Package
Y990-0271: Small Crimp Vial Kit
Y990-0272: Large Crimp Vial Kit

Part Number: Description
345-0050: Clear Tubing 1/8″ x 1/4″
690-0028: Tweezers
990-0150: 1.0 μL Microcaps Pipette (box of 100)
990-0206: Metal Cap; High 24/400 Steel
990-0207: Thin Septa
990-0229: High Temperature Sample Bottles
Y990-0116: Inline Desiccator Kit
Y990-0206: Septa and Caps Kit
Y990-0226: Bottle Testing Assemblies Kit
Y990-0270: Needle Replacement Kit
