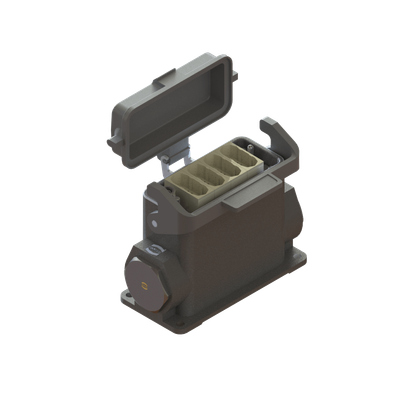

Cavity Eye - Model MPM8-B-OS and MPM32-A -Mold Plug with Memory
The Cavity Eye Mold Plug with Memory (MPM) socket was developed for the Injection Molds equipped with Cavity Eye pressure sensors. The wiring of the sensors takes place in this device, and it is also the counterpart of the Cavity Eye Smart Measuring Plug (SMP). This socket is equipped with a special, integrated memory, and responsible for storing the data of the molds and the Cavity Eye sensors. The memory can also contain the production data of the mold, for example: reference curves, tolerances, pin diameters, cavity IDs, etc.
There are two types of Mold Plugs you can choose from, depending on how much sensor signal is required to handle. MPM8-B type can be used up to 8 sensors. Over 8 sensors and up to 16 sensors 2 MPM8-B device can be applied. In case of higher sensor number, the MPM32-A device can be used. It can handle 32 sensors at the same time. In case of using more, than 32 sensors but maximum 64 sensors, 2 MPM32-A device is the right choice. The production starting and restarting procedure is getting quicker and easier with the memory in the MPM. You only have to upload memory content once, and the mold can be transferred to any injection machine afterwards, because the information is moving with the mold.
