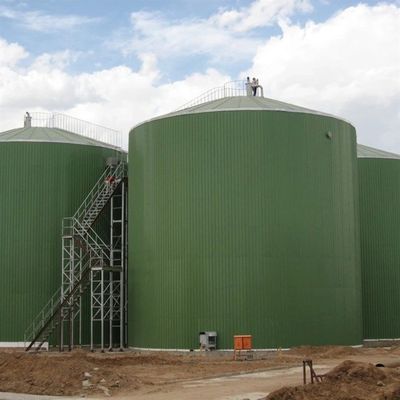

Mondes - Biogas Digester Septic Tank

Lipp tanks can be utilized in biogas production by modifying them to function as a sealed anaerobic digestion vessel. The tank is then filled with organic material such as manure, agricultural waste, or food waste, and bacteria break down the material, releasing biogas. The biogas can be used as a renewable energy source for heating and electricity generation.

The biogas digester septic tank`s sturdy construction ensures that it can withstand the pressure and corrosive gases produced during the biogas production process, making it an ideal choice for large-scale biogas plants.

Short construction period and low cost:
LIPP tank is on-site building, tank cover is made on the ground. Line speed of molding & bending can reach 5meters/min, set-up of scaffolding and other auxiliary facilities is not required, so as to make construction period very short. Main material is thin steel plate, its weight is only equivalent to the rebar of reinforced concrete tank, this greatly reduces the cost for tank.

Diameter: continuously variable from 3 to 50 m
Height: continuously variable from 2 to 35 m
Volume: from 40 to 15,000 m3
Media: solid, liquid or gaseous
Exterior color of biogas digester septic tank: freely selectable according to RAL
