SWAN - Monitor AMI ISE Universal - Ammonium

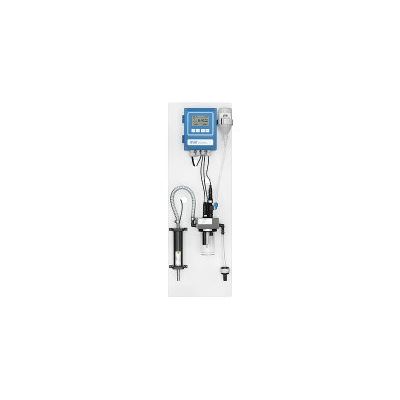

Monitor for continuous measurement of Ammonium, Nitrate or Fluoride in potable water. Complete system mounted on PVC panel: Transmitter AMI ISE Universal in a rugged aluminum enclosure (IP 66). Flow cell M-Flow 10-3PG with temperature sensor (NT5k). Factory tested and calibrated. Ready for installation and operation.
Most popular related searches
flow cell
flow meter
drinking water system
temperature monitoring
sample conditioning
analytical instrument
temperature sensor
drinking water
nitrate in drinking water
analytical monitoring system
For use with ion sensitive electrodes with separate reference elctrode:
- Swansensor Ammonium or Swansensor Nitrate or Swanssensor Fluoride
- Swansensor Reference FL
Optional accessory:
- Swansensor deltaT flow meter
- Spray nozzle for sensor cleaning
NH4-N / NO3-N / F Measurement
- Measuring range: 0.1 to 1`000 ppm
- Reference temperature: 25° C
- Automatic temperature compensation according to Nernst.
Temperature measurement
- Measuring range: -10 to 50°C
- Resolution: 0.1° C
Power Supply
- Voltage: 100-240 VAC, 50/60 Hz or
- 24 VDC (+- 10%)
Sample conditions
- Flow rate: 4 to 15 l/h
- Temperature: up to 35° C
- Inlet pressure: up to 1 bar
- Outlet pressure: pressure free
Dimensions
- Panel: 280 x 850 x 150 mm
