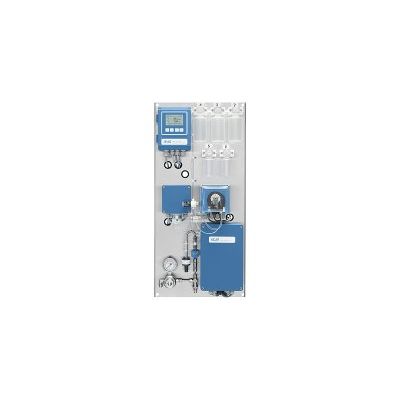

SWAN - Monitor AMI Line Total Organic Carbon (TOC); AC
On-line analyzer for the continuous measurement of Total Organic Carbon in pure and ultrapure water. The elegant way of TOC measuring in Pharmaceutical Industries, Semicon and Ultrapure water applications.
Most popular related searches
total organic carbon
TOC measurement
ultrapure water
conductivity detection
analytical instrument
organic carbon in water
industrial ultrapure water
ultrapure water TOC
pharmaceutical ultrapure water
ultrapure water monitoring
- Reagent-free measurement of TOC by UV oxidation and differential conductivity detection.
- System suitability test according USP <643> and EP 2.2.44.
- Automatic addition of standard solutions.
- Automatic dilution of standards to 500 ppb TOC as Sucrose and to 500 ppb TOC as Benzoquinone.
- Reaction Time: < 2 Minute
- Factory tested and ready for installation and operation.
TOC Measurement
- Measuring range: 0,1 to 1`000 ppb TOC
- Resolution: ± 0,1 ppb
- Max. Conductivity 2µS at 20°C
- Reproducibility:
- 0,1 to 50 ppb: ± 1 ppb
- 50 to 1`000 ppb: ± 2%
