Sensaphone - Model FGD-WSG30 -Monitoring System
FromSensaphone, Inc.

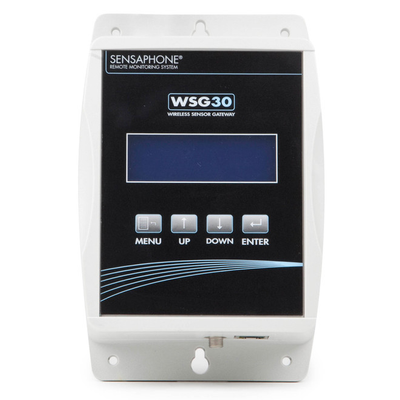

The Sensaphone WSG30 Monitoring System offers a flexible monitoring solution when hard-wiring sensors is not a cost-effective or viable option. It also functions as a data logger to demonstrate compliance. The WSG30 is encased in a stylish, wall-mountable enclosure with an easy-to-read, 80-character LCD display. A built-in rechargeable battery backup, data logging, and a standard temperature sensing range (-109° to 115°F) make this unit an excellent choice for any wireless application. A wireless temperature sensor with an RTD probe is also available for measuring extreme air temperature from -328° to 248°F | -200° to 120°C.
Most popular related searches
remote temperature sensor
remote sensor
data logger
temperature sensor
RTD sensor
remote monitoring
remote temperature monitoring
monitor humidity
temperature and humidity monitoring
temperature monitoring
- INCLUDED: Internal rechargeable battery-backup system provides two hours of continuous monitoring and alerts in the event of a power outage
- INCLUDED: Power failure monitoring
- NO MONTHLY FEES: Unlike other systems that require subscriptions
Wireless, Web-Based Monitoring and Data Logging... Made Easy
- An easy solution to web-based monitoring and ideal for applications where running wires can be difficult
- Receive alarm notifications through a standard Ethernet connection
- Notifies up to 32 people by email, email-to-text message, SNMP, or Modbus in the event of an alarm
- Up to 30 external wireless sensors monitor temperature, humidity, water, and more
- Native temperature sensing range of -109° to 115°F | -85° to 57°C
- Extended temperature ranges from -328° to 248°F | -200° to 120°C available
- Data logger records up to 67,000 samples, including data, date, and time
- Make programming changes and access status conditions online
- Made in the USA
Communication Method:
Ethernet
Number of Inputs:
30 Wireless Sensors
Input Types:
WSG30 Wireless (Temperature, Humidity, Dry Contact, 4-20mA, Water Detection, Power Failure)
Temperature Sensing Range:
-109° to 115°F | -85° to 57°C (standard)
-328° to 248°F | -200° to 120°C (with RTD Sensor)
-328° to 248°F | -200° to 120°C (with RTD Sensor)
Remote Access:
Website to access status and programming
Local Access:
4 line LCD display and keypad
Alarm Notification:
32 e-mail and/or email-to-text messages, SNMP trap, Modbus
Power Supply:
Plug in power supply also monitors for power failures
Internal battery backup
Internal battery backup
Battery Backup Time:
2 hours
Data Logging:
67,000 samples (include data, date and time)
Physical:
7.4 x 5.1 x 2" | 190 x 130 x 50mm
2.5lbs | 1.3kg
2.5lbs | 1.3kg
Warranty:
1 Year
