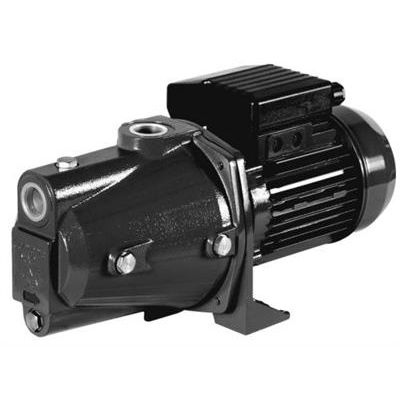

Soggia - Model SJ -Monoblock Self-Priming Jet Pumps

SHARE

Monoblock self-priming electropumps type "JET" equipped with nozzle and Venturi. This series allow to suck water till 7 meters depth, even with air particles.. The "SJ" series assures great hydraulic performance, a considerable high suction and output pressure capacity and very low noise while running. It is recommended that these Dumps are used to carry only chemically Dure liquids, with temDeratures not higher than +40 C°.

Most popular related searches

self-priming jet pump

surface electric pump

self-priming pump

Max capacity: 90 l/min (5,4 m3/h )
Max head: 56 meters
Rotation speed 2850 r.p.m.
Continuous service
Maximum suction height: 7 meters

Monoblock horizontal axis pump
Pump body and Motor Bracket in cast iron G20
Stainless steel shaft
Mech. Seal in ceram./graph.
Impeller in Noryl with glass fiber at 20% (available Brass Impeller on request) - Serie A Impeller in Brass
Venturi tube in Noryl charged with glass fiber at 20%

Potable water
Home pressure increasing
Small/medium garden irrigation
Draining tanks and pools
Pumping clean water even on industrial machinery

Electric, closed-type with external cooling fan ,
Protection class IP 44
Class of insulation F
Single-phase motors at 220-230 V - 50 Hz; with thermal protector.
Three-phase motors at 230/400 V - 50Hz; protection must be provided by user.
