HidroMak - Monoblok Garbage Truck Body
The Monoblok is a rapid and economic solution in collection garbage. It Provides a modern, Clean and an innovative appearence fort he environment. It has a 100% leakage-proof quality and it is much lighter than the other ones since, in this compactor there is no rear cover system present.

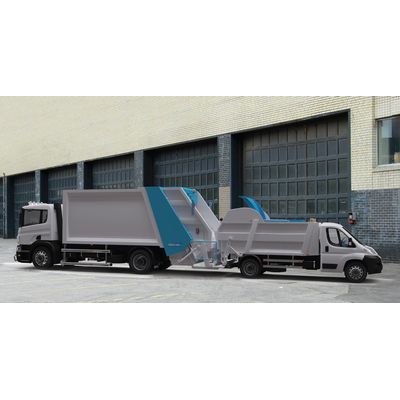

MiniPacker can transfer Waste to other Refuse collection vehicle
This compactor can make transfer to rear loading garbage compactors. (Please watch our monoblok / minipacker video)
Minipacker Leak Proof
MiniPacker / Monoblok, garbage compactor has`t got rear gate. Because of this it is completly leak proof.
MiniPacker is suitable for narrow street
Suitable for narrow street
Container Lifting Device
Optional, Moboblok Garbage Body has a metal or plastic container lifting device.
Mekanik Özellikler
- Body Volume: 5-7 m3
- Floor: 4 mm ST-52
- Sides: 3-4mm ST-52
- Chasis: 5 mm
- Loading Height: 1930 mm
- Maual Loading Height: 1480 mm
Hidrolik Özellikler
- Operation Type: Automatic, Manual,
- Num. of Hydraulic Cylinders: 5
- Compaction Ratio: 1:3 ( for Home Type Wastes)
- Operational Pressure: 150-170 bar
- Hydraulic Pump: 34-73 cm3/rev
- Oil Tank: 60-80 lt
- PTO: 750 - 1500 rpm
- Operation Cycle: 24-40 sec
