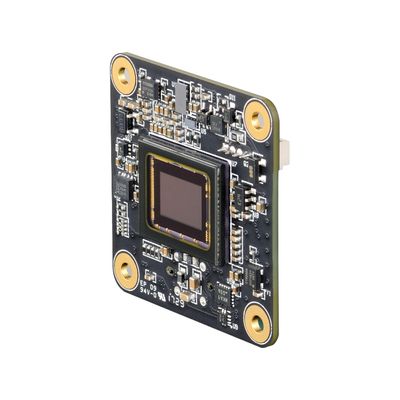

Imaging Source - Model DMM 37UX287-ML -Monochrome Board Camera
37U Series Monochrome Board Camera. USB 3.1 Interface. 1/2.9 inch Sony CMOS Pregius IMX287 Sensor. 720×540 (0.4 MP), up to 539 fps. Pixel Size: H: 6.9 µm, V: 6.9 µm. Global Shutter. Trigger and I/O Inputs. Only 30×30×15 mm.
Most popular related searches
GENERAL BEHAVIOR
- Vision standard: USB3 Vision is the interface standard for implementing the USB 3.0 interface in industrial machine vision.
- Dynamic range: 10 bit
- Resolution: 720×540 (0.4 MP)
- Frame rate: 539 fps
- Video output format: 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
INTERFACE (OPTICAL)
- IR cut filter:
- Sensor type: CMOS Pregius
- Sensor specification: Sony IMX287LLR
- Shutter: global
- Format: 1/2.9 inch
- Pixel size: H: 6.9 µm, V: 6.9 µm
- Lens mount: M12x0.5
INTERFACE (ELECTRICAL)
- Interface: USB 3.1
- Supply voltage: 4.75 VDC to 5.25 VDC
- Current consumption: approx 380 mA @ 5 VDC
- Auto iris control:
- Trigger:
- I/Os:
INTERFACE (MECHANICAL)
- Dimensions: H: 30 mm, W: 30 mm, L: 15 mm
- Mass: 7 g
ADJUSTMENTS
- Shutter: 1 µs to 30 s
ENVIRONMENTAL
- Temperature (operating): -5 °C to 45 °C
- Temperature (storage): -20 °C to 60 °C
- Humidity (operating): 20 % to 80 % (non-condensing)
- Humidity (storage): 20 % to 95 % (non-condensing)
