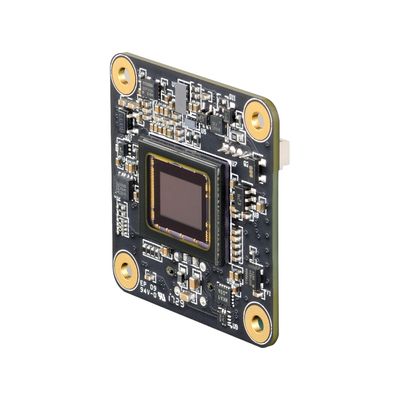

Imaging Source - Model DMM 37UX290-ML -Monochrome Board Camera
37U Series Monochrome Board Camera. USB 3.1 Interface. 1/2.8 inch Sony CMOS STARVIS IMX290 Sensor. 1,920×1,080 (2.1 MP), up to 143 fps. Pixel Size: H: 2.9 µm, V: 2.9 µm. Rolling Shutter. Trigger and I/O Inputs. Only 30×30×15 mm.
GENERAL BEHAVIOR
Vision standard: USB3 Vision is the interface standard for implementing the USB 3.0 interface in industrial machine vision.
Dynamic range: 10 bit
Resolution: 1,920×1,080 (2.1 MP)
Frame rate: 143 fps
Video output format: 8-Bit Monochrome, 16-Bit Monochrome
INTERFACE (OPTICAL)
IR cut filter:
Sensor type: CMOS STARVIS
Sensor specification: Sony IMX290LLR
Shutter: rolling
Format: 1/2.8 inch
Pixel size: H: 2.9 µm, V: 2.9 µm
Lens mount: M12x0.5
INTERFACE (ELECTRICAL)
Interface: USB 3.1
Supply voltage: 4.75 VDC to 5.25 VDC
Current consumption: approx 260 mA @ 5 VDC
Auto iris control:
Trigger:
I/Os:
INTERFACE (MECHANICAL)
Dimensions: H: 30 mm, W: 30 mm, L: 15 mm
Mass: 7 g
ADJUSTMENTS
Shutter: 20 µs to 30 s
ENVIRONMENTAL
Temperature (operating): -5 °C to 45 °C
Temperature (storage): -20 °C to 60 °C
Humidity (operating): 20 % to 80 % (non-condensing)
Humidity (storage): 20 % to 95 % (non-condensing)
