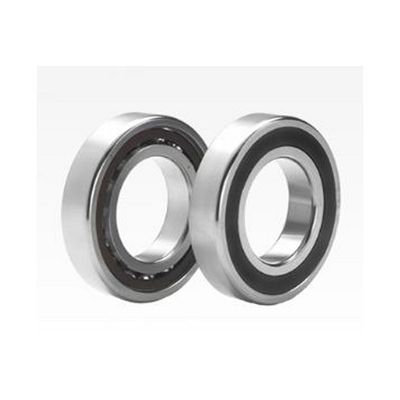

Monton - Model 7004AC -70 Series Angular Contact Ball Bearings

Bearing NO. 7004AC. Dimensions(mm): d 20, D 42, B 12, ramin 0.6, r1min 0.15,  Mounting dimensions; da min 24.5, Da/Db max 37.5, ra max 0.6, rb max 0.15, Loading kN; Cr 9.2, Cor 6,  Limited Speed r/min; Lub. 34000, Oil. 50000, Prelaoding N; A(L) 80, B(M) 240, C(H) 480, Axial rigidityRa N/μm; A(L) 64, B(M) 90, C(H) 113, Weight Kg ≈ 0.06.
