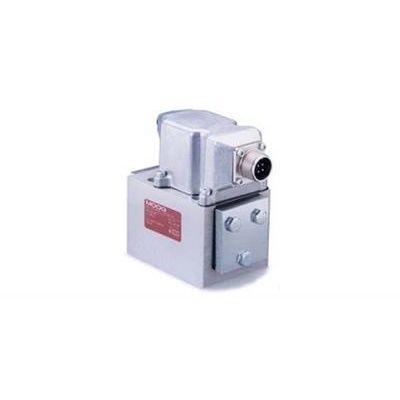

Moog - Model G631/631 Series -Flow Control Servo Valve
FromA&S Hydraulic
The G631 series flow control servovalves are throttle valves for 3- and preferably 4-way applications. They are a medium performance, two-stage design that covers the range of rated flows from 1.0 to 20 gpm at 1,000 psi valve drop. The output stage is a closed center, four-way sliding spool. The pilot stage is a symmetrical doublenozzle and flapper, driven by a double air gap, dry torque motor. Mechanical feedback of the spool position is provided by a cantilever spring. The valve design is simple and rugged for dependable, long life operation.
These valves are suitable for electrohydraulic position, speed, pressure or force control systems with high dynamic response requirements. Most popular related searches
flow control
flow control valve
control valve
servo valve
throttle valve
hydraulic valve
disc filter
servo-controlled solenoid valve
valve operator
- 2-stage design with low friction double nozzle pilot stage offers high resolution and low hysteresis in a compact size.
- Rugged, small body size design with a wide range of options is ideal for a wide range of machines
- Integrated fail-safe options enables machine builders to reduce componentry
- Field-configurable 5th port for separate pilot supply offers greater flexibility
- Field-replaceable first stage disc filter for ease of maintenance
- Rated Flow
4 to 76 l/min (1 to 20 gpm) @ ?p 70 bar (1000 psi)
- Maximum Flow
150 l/min (40 gpm)
- Maximum Operating Pressure
310 bar (4,500 psi)
- Mounting Pattern
ISO 4401-05-05-0-94 (for 4 ports)
- 100% Step Response
10 to 15 ms @ 210 bar (3,000 psi)
- Electric Data
- Supply Voltage
N/A
- Rated Signal Options
+/-15 and +/-50mA
- Additional Options
Contact Industrial Application Engineering for additional Flow, Pressure, and Signal options
