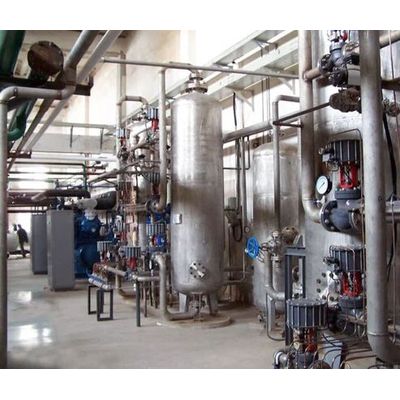

MOS - CO2 Recovery Plants

SHARE

The first step of volume reduction is a two-stage compression. With a dry-running piston compressor, the carbon dioxide coming from fertilizer unit is compressed to one-sixteenth of the original gas volume. After the CO2 compressor, the gas passes through Deodorizer’s consisting of two vessels, substances influencing odor and taste are removed, with identical plant design, the only difference between the purifier and the dryer is the filling with special activated carbon. After this, the gas passes through drying unit of the CO2 recovery plant. It consists of two adsorption tanks filled with drying agent molecular sieves In order to remove the residual moisture from the gas, the carbon dioxide flows through one tank while the other tank is regenerated by the heater. In the next phase, the CO2 is liquefied in a shell and tube heat exchanger and inert gases like O2 and N2 are removed.

Most popular related searches
CO2 recovery system
CO2 recovery
piston compressor
flue gas
liquid storage tank
gas recovery system
liquid storage
molecular sieve
stack gas
gas recovery

All stages of purification in a MOS CO2 recovery plant will be precisely adjusted to the specific requirements of the end user, taking into consideration technological and financial aspects. By compression and condensation, the storage volume is reduced to such an extent that temporary storage of even very large quantities of carbon dioxide requires little space. The compressed gas is liquefied in the condenser and then collected in a storage tank.

  • CO2 gas won by a CO2 Stack Gas Recovery System is a by-product of flue gas production from boilers as well as from other flue gas sources offering an economic CO2 source to any CO2 consumer or reseller
  • The flue gas initially treated for removal of Sulphur compounds before it is transported into the absorber where the CO2 gas is extracted by absorption utilizing with our specially formulated solvent
  • This solvent is then thermally treated by the steam-controlled re-boiler in order to separate the CO2 gas from the absorption solution
  • After the subsequent compression, purification and liquefaction the CO2 quality meets the specifications of ISBT
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Delivery Time: 2-3 Months
  • Minimum Order Quantity : 1 Piece
  • Capacity : 30-2000 Kg/Hr
  • Production Rate : 5 star
  • Automatic Grade : Automatic
  • Design : Customized
  • Plant Capacity : 100-2000 kg/h
  • Power : 60-330 kW
  • Liquid Storage Tank : 5-100 MT
  • High performance
  • Superior efficiency
  • Easy and safe recovery of CO2 gas
