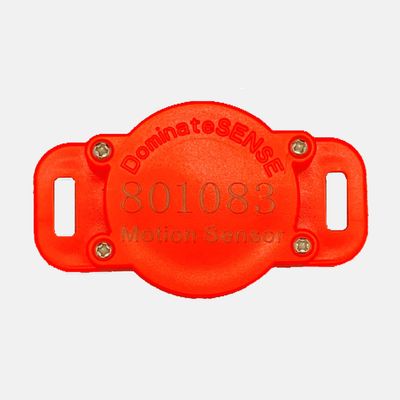

Motion Tag
The BLE Motion Tag can be used as a Beacon or in a BLE Mesh network. With its built-in motion sensor, it can register vibration and movement of the asset and immediately report to the server. This tag can be connected directly to motors via a special designed accessory. Designed for harsh environments, it is ideal to track asset’s working hours for maintenance purposes. It also enhances asset’s security. This device is ideal for Asset management in any industry that requires PM or predictive maintenance as well as safety and security.
Most popular related searches
asset monitoring
water proofing
vehicle tracking
network modeling
beacon
well maintenance
water protection
Applications
- Asset Tracking
- Vehicle Tracking
Specifications
Description: BLE Beacon, BLE Mesh Network
Model Name: Motion Tag
Size (Diameter x Length x Thickness): Ø 40x58x17.5 mm
Ø 1.60×2.28x.69 inch
BLE Module: NRF52832
Built-in Sensor: Motion sensor
Power Output: 100m (+4dbm)
Ingress Protection: IP67. Water Proof
Battery Type: Coin (CR2477)
Battery Lifetime: 24 months*
Battery Replaceable: Yes
Attachment Method: Screw, Magnet, Cable Tie, Adhesive
Color: Black
Material: ABS
Operating Temperature: -20 to +55ºC
-4 to +131ºF
Certificate: FCC, CE
*Note: Depends on the usage
