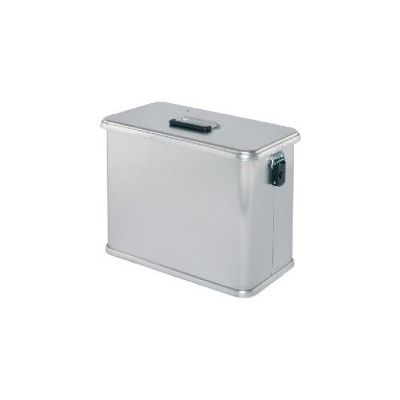

Alu Logic - Model CM 445 -Moto Box
FromAlu-Logic Ltd.
Lightweight, rigid, water- and weatherproof Pannier Boxes and Topcases made of 1,2 mm aluminium sheet, designed and manufactured for motorcycles. The Pannier Boxes type 32, 36 and 41 liters are symmetric and intended to attach to both left and right side of the motorcycle. The Topcase type 35 liters is to be mounted on the rear of the motorcycle. Robust and solid boxes, providing storage, protection and safety for all the supplies of a motorcyclist on road journeys or off-road.
Most popular related searches
The CM 445 range comprises 3 Pannier Boxes, capacities ranging 32, 36 and 41 liters, as well as 1 Topcase with 35 liters capacity.
Your advantages in detail - technical specification:

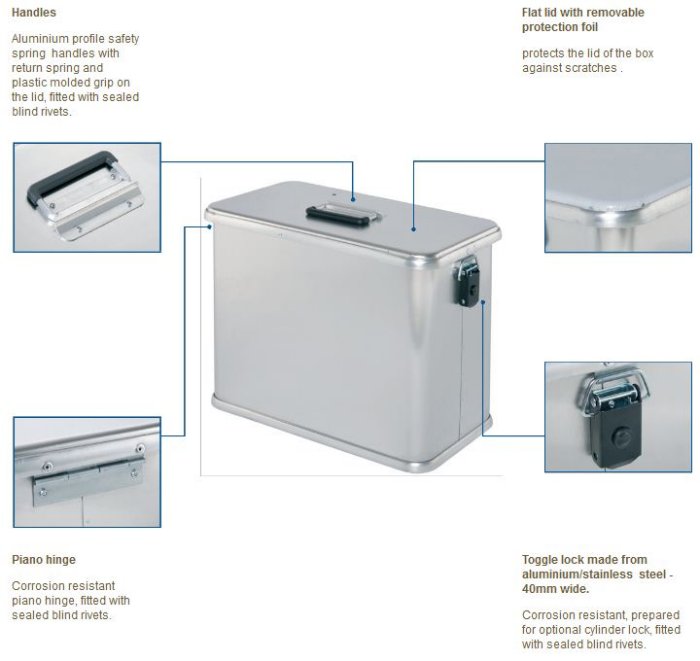

- Quality, endurable aluminium box. 1.2 mm aluminium sheet material on all sizes, light and rigid by design.
- Aluminium profile safety spring handles with return spring and plastic molded grip on the lid, fitted with sealed blind rivets.
- Flat lid with removable protection foil protects the lid of the box against scratches.
- Toggle lock made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for optional cylinder lock, fitted with sealed blind rivets.
- Corrosion resistant piano hinge, fitted with sealed blind rivets.
- Waterproof. All internal joints sealed with silicone coating, provides a water- and weatherproof box.
- Gap-free, load-bearing, dot welded overlap joint of the body sheet.
- Rubber sealing strip profile in the upper rim for ingression protection against dust and water.
- All riveted joints with sealed blind rivets.
- Lid strap, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
- The body sheet of the Topcase is reinforced with an all-around reinforcement rib and additional corner ribs.
- 100-110° opening angle of the lid.
