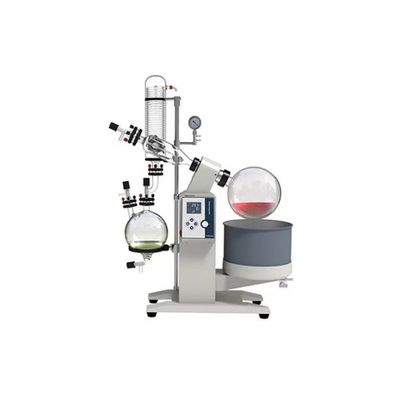

SHINE - Model R-1005 -Motorized Lift 5L 10mm/s Vacuum Rotary Evaporator With Vertical Condenser
Large capacity and large opening of evaporating flask give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, solvent evaporates more efficiently under cacuum condition.
Most popular related searches
rotary evaporator
vacuum evaporation
vacuum evaporator
bathing water
condenser coil
solvent evaporator
vacuum distillation
water heating
automatic level switch
water evaporator
- Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.
- Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation
- Teflon discharge valve is corrosion resistant and contamination free
- Water bath jacket protecting operator from scalding by hot liquid
- Water Bath Heating Power: 250 W
- Water Bath Temp Accuracy: ±1.5?
- Rotating Flask: 5L
- Water Bath Capacity: 12L
- Lifting Speed: 10mm/s
- After-sale Service: On-line Support, Video Support, Local Distributors
- High Light: V5L acuum Rotary Evaporator , 10mm/s Vacuum Rotary Evaporator , 5L rotary vacuum distiller
- Model : R-1005
- Power Supply : 1~220V, 50/60Hz
- Motor Power : 250 W
- Overall Power : 2.3 KW
- Working Environment : 5~35?
- Water Bath
- Temperature : Room Tem~99 ?
- Heating Power : 2.0KW
- Temp Accuracy : ±1.5 ?
- Size : Φ300×170mm
- Material : Stainless Steel
- Media : Water ONLY
- Capacity : 12L
- Condenser : Type : Vertical double condensing coils
- Cooling Surface : 2780 cm2
- Rotating Flask
- Capacity : 5L
- Opening Diameter : Flange Φ50mm
- Evaporating Speed :
- Water:2.0 L/h;
- Ethanol:5.4 L/h
- Rotating Speed : 20~140 rpm
- Speed Control : Digital Display and Stepless Control
- Receiving Flask Capacity : 3L
- Vacuum : Ultimate Vacuum : ≤ 399.9(3mmHg)
- Vacuum Sealing : PTFE + Viton Gaskets
- Lift
- Lifting : Motorized Lift
- Lifting Distance : 0~150mm
- Lifting speed : 10mm/s
- Safety Protection : Dry-run, Over-temp shut-off, Fuse protections
- Dimension (mm) : 840W×460D×1090H
- Net Weight : 35 KG
- Package : Wooden Case
