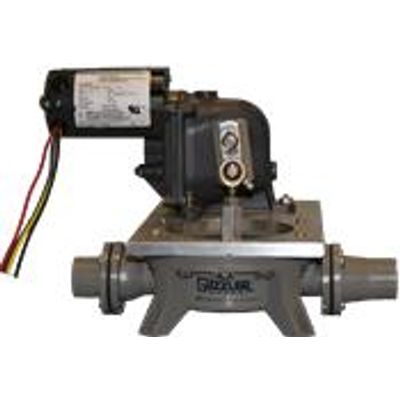

Guzzler - Model GE-0400D -Motorized Pump
Motorized version of Guzzler 400 series pump.
Most popular related searches
- 115 VAC gearmotors with speeds from 16 to 100 rpm
- 1.8 gpm to 11.0 gpm
- Accommodates 1/2" to 1-1/4" hose
- Available with wide range of connection styles and sizes
- Pump body and flanges made of durable, lightweight Delrin® plastic
- Optional variable speed control
- Max Pressure Range: 2 - 8 psi / 0.14 - 0.55 bar
- Lift/Head Range: 5.0 - 18.0 ft / 1.5 - 5.5 m
- Capacity Range: 1.8 - 11.0 gpm / 3.8 - 41.6 lpm
- Volume per stroke: 0.44 qt / 0.42 l
- Max Service Temp: 150° F / 66° C
- Speed Control: None
- Valves: Flapper (Buna-N)
- Diaphragm: Buna-N (Nitrile)
- Clevis Button Assembly: SS Washer & Aluminum Clevis
- Clamp Ring: Motor Mounting Plate
- Inlet Hose Connection: 1" Smooth
- Outlet Hose Connection: 1" Smooth
- Motor Options: 115VAC, rpm: 27, torq: 100 in-lbs | psi: 7, head (ft): 16
- Pre-Pak Accessories: Not selected
- Body & Ports * Delrin / Gray
- Clamp Ring Aluminum Motor Mounting Plate
- Valves * Flapper, Duckbill, Umbrella
- Diaphragm * Buna-N, Buna-N Double Sided, Neoprene, Viton, EPDM, Silicone
- Clevis/Button Assembly * SS Washer + Aluminum Clevis
- Motor 115VAC: 16 RPM, 27 RPM, 62 RPM, 100 RPM
- Other Variable Speed Control
