Motwane - Model DCM 39A/9930A -Digital Clamp Meter
MOTWANE’s Digital Clamp Meter DCM 39A & DCM 9930A comprises high precision, industrial grade, RMS, auto-ranging clamp meters with 3¾ digits display. Both the clamp meters can be used as multimeters with test leads for AC/DC measurements of up to 400 mA, along with measuring AC/DC voltage, resistance, frequency, capacitance, duty cycle, diode, continuity, etc. These clamp meters are provided with multiple safety features like a water-resistant front panel and fireproof heavy-duty ABS casing. It uses the Hall Effect sensor for measuring the current. The model DCM 39A measures AC/DC currents up to 1000A. The model DCM 9930A measures AC/DC currents up to 2000A.
Application
- Generation, Transmission & Distribution
- Substation Process industries
- OEMs
- Railways
- Telecom Industries
- Service Industries
Features
- Auto-ranging 3¾ digits (3999) LCD-display
- True RMS reading for ACV & ACA
- 2 in 1 clamp meter + Digital Multimeter
- Overload protection for all ranges
- Data hold feature with relative key facility
- Water resistance front panel, fireproof heavy-duty ABS casing
- Current sensor- Hall Effect Sensor
- Over range indication: ‘OL’ is displayed
- Max conductor size is 60mm approx
- Power – one 9V battery type (6F22)
General
- Display : 3 ¾ Digits LCD display.
- Dimension (H X W X L) : 255 X 73 X 38 mm (approx.)
- Net weight : 515 gm with battery (approx.)
Power
- Power Supply : 9V Battery Type 6F22
Standard Accessories
- Pair of Test Leads, User Manual, One 9V Battery installed

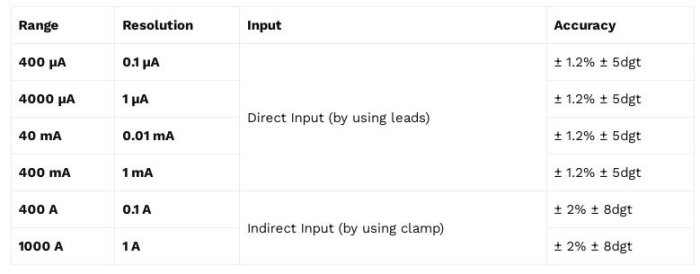

AC/DC Current (True RMS for AC)- DCM39A
- Overload protection : AC/DC 500mA(Fuse) AC/DC 1000A/1000V
- Frequency Response : 45Hz – 1KHz

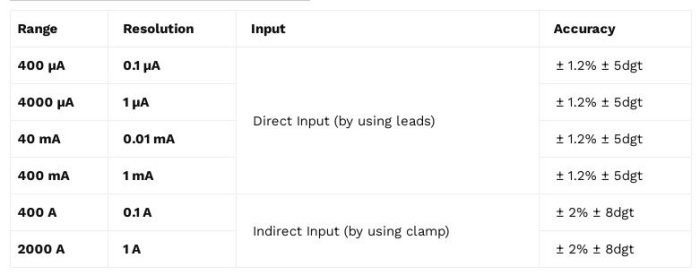

- AC/DC Current (True RMS for AC)- DCM9930A
