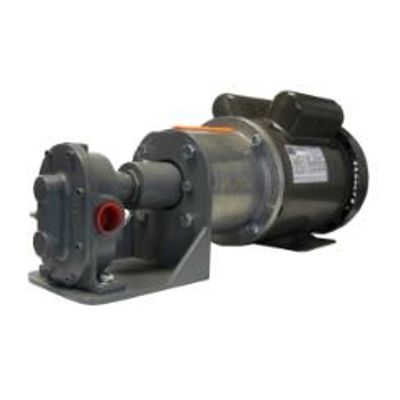

Lobee - Mounted Pump/Motor Units and Turnkey Systems
Lobee Positive Displacement Pump Units are now available in a range of sizes and configurations. Standard built to order pump units come in 1/3, 1/2, 3/4, 1, 1-1/2, 2, 3 and 5 HP ratings. Each unit is assembled to customer specification including pump type, flow and pressure rating, with or without relief valve, direct or base mounted, and coupled to ODP, TEFC(NV), Wash-Down or Explosion-Proof motor. Designed for pumping viscosities from water to molasses . Speed control options include 1200 RPM Motors , Mechanical Gear Reducers and VFD (Variable Frequency Drive).
Most popular related searches
pump system
variable frequency drive
positive displacement pump
relief valve
lobe pump
worm gear reducer
corrosive fluid
laboratory chemical
particulate removal
mixing system
- Food oils, syrups, coatings and additive transfer
- Water, glycol and oil based coolant and heating systems
- Laboratory chemical and solution testing
- Marine fresh water systems
- Caustic and corrosive fluid transfer
- Liquids mixing systems
- Filtration and circulation systems
- Base or Direct Mounted Units
- Up to 5 HP, Motors are 56 to 215 Frame, Single and Three Phase, ODP, TEFC(NV), Wash-Down, Explosion Proof, available in Standard, High and Premium Efficient
- Flows to 30 GPM
- Viscosity to 100,000 SSU
- Choose from any Lobee Gear Pump - 316 and Alloy 20 Stainless Steel, Federalloy™ Bronze or Cast Iron
- Port sizes from 1/8” to 1-1/2” NPT
- Multiple Seal Options
- 0-1800 RPM Range of Operation
- Bi-Directional Shaft Rotation
- Operating Temperatures to 450° F
- Continuous Working Pressure up to 150 PSI
- Integral in Pump or Externally Plumbed Adjustable Relief Valves
- Suction Screens Available for Particulate Removal
