Sentry Air Systems - Model SS-200-MS/SS-225-MS -Mounted Sentry Fume Extractor

FromSentry Air Systems, Inc.

SHARE

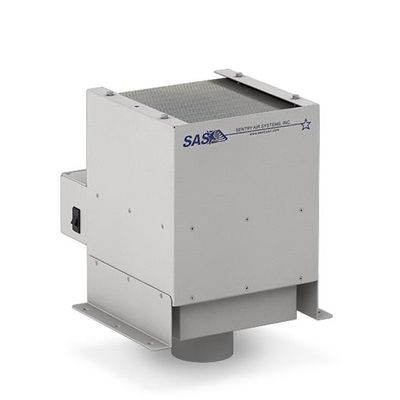

The Mounted Sentry Fume Extractor offers a small footprint but provides a powerful industrial air cleaner that can be mounted directly to a workbench, a hood, or even to enclosed machinery. This modular unit provides multiple mounting options, and two inlet configurations (3” or 4” diameter), and can be a simple and effective addition for multiple brands and types of enclosed machinery that require fume extraction.

Most popular related searches

mounted fume extractor

fume extraction

Laser Marking
Printing Fumes
Soldering
Fume/Vapor Source Capture

Includes: mounting brackets
Optional: variable speed controller and hour counter
Quiet, reliable, low-maintenance operation
Sturdy construction
Low power consumption
Simple, quick “no tool” filter change
Long filter life

Base Unit Dimensions
- Length: 10.5” (includes control box)
- Width: 10” (includes mounting brackets)
- Height: 12.5” (includes inlet plenum)
Inlet Config: 3” or 4” diameter
Cabinet Material: 16 ga. carbon steel
Weight: Approx. 10 lbs
Air Volume (approximately)
- 95% ASHRAE:
  - 200: up to 100 CFM
  - 225: up to 130 CFM
- Pre-Filter + HEPA:
  - 200: up to 80 CFM
  - 225: up to 91 CFM
Electrical
- 200: 115/1/60, 0.3 amps; 220/1/50, 0.2 amps
- 225: 115/1/60, 0.46 amps
- 8’ grounded power cord with NEMA 5-15P plug
Sound Level (High at 3’ from inlet)
- 200: Approx. 56 dba
- 225: Approx. 64 dba
Patent #: 5,843,197

HEPA (up to 99.97% efficiency on particles down to 0.3 microns)
ASHRAE (up to 95% efficiency on particles down to 0.5 microns)
Activated Carbon
Specialty-Blended Filter Media (i.e. acid gas, mercury, aldehyde, and ammonia)
